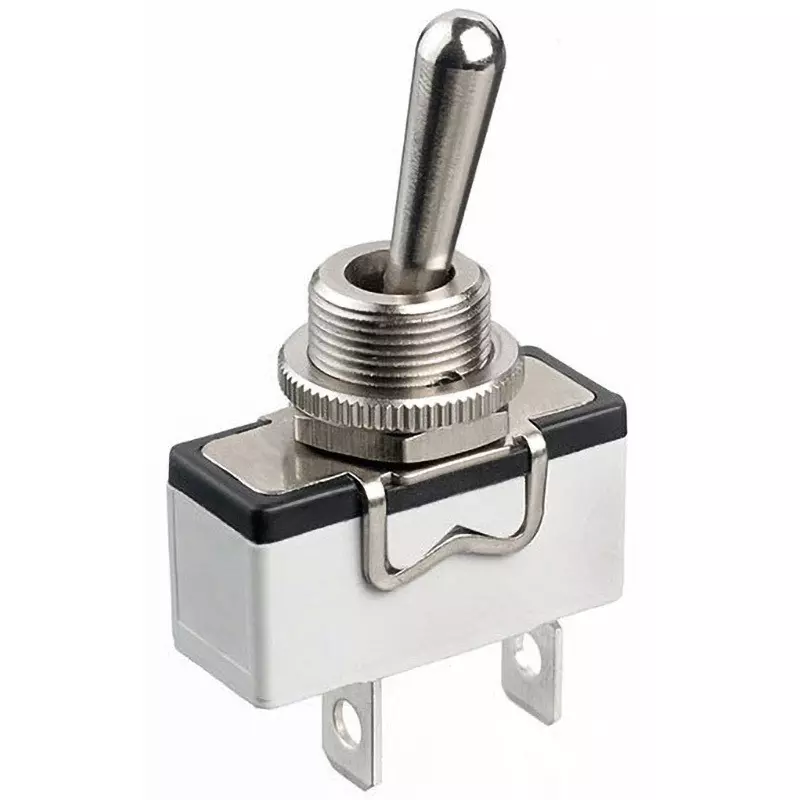

| Type of Product | 600H-600Nh Series + Toggle Switch |
| Model No | 636H/2 |
| Material | Polyester resin |
| Country of Origin | Japan |
Type of Product |
600H-600Nh Series + Toggle Switch |
Model No |
636H/2 |
Material |
Polyester resin |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Protection Class |
IP40 |
Contact Resistance |
10 mΩ Max. (initial value) |
No. of Pole |
Single pole double throw |
Standard |
UL standard (UL1054), CSA standard (CSA22.2 No.55), NF standard (EN 61058-1), VDE standard (EN 61058-1) |
Storage Temperature |
-20 - 55 |
Actuator Type |
Metal lever |
Contact Material |
Silver nickel |
Monotaro ID |
54865774 |
Terminal Shape |
Solder terminals/quick connect terminals |
Import Country |
Direct Import from Japan |
Specifications |
Material (actuator): Brass Surface treatment (actuator): Nickel plating |
Compatible Panel Thickness (mm) |
4.5max. (between two nuts) |
Operation Ambient Temperature (°C) |
-20 - 55 |
Insulation_Resistance (MΩ) |
1000min.(DC500V Mega) |
Withstand voltage (V) |
AC2000 (between terminals), AC2500 (between terminals and frame) |
Part No |
64-3720-46 |
Circuit configuration |
ON-ON |
