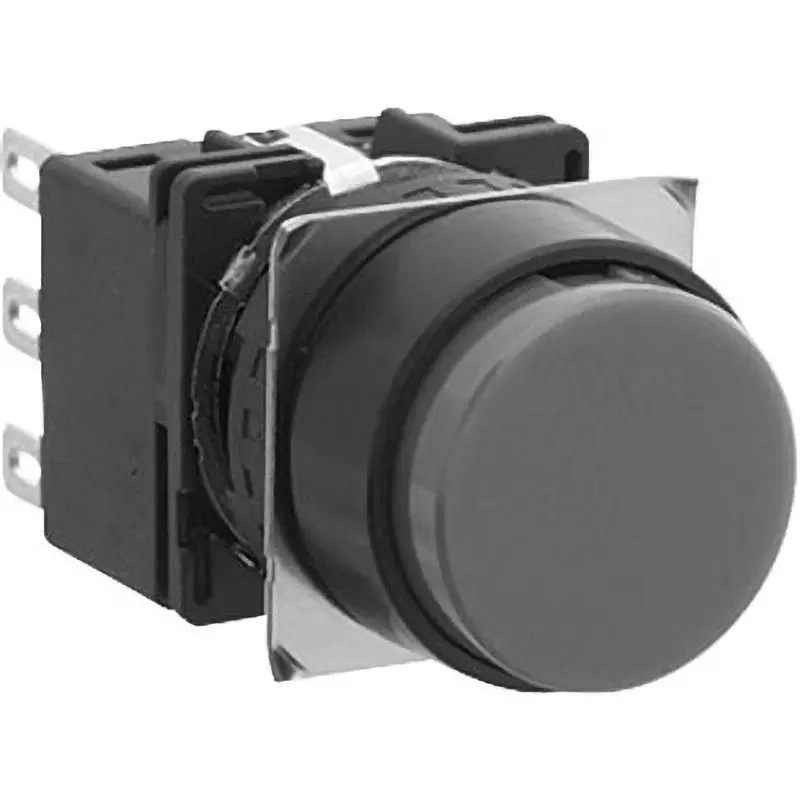

| Type of Product | Lb Series Push Button Switch Round Type |
| Model No | LB1B-M1T2VLW |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Lb Series Push Button Switch Round Type |
Model No |
LB1B-M1T2VLW |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
2c |
Type |
Push button switch |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-30-80 (no icing) |
Contact Material |
Gold contacts |
Monotaro ID |
60204952 |
Terminal Shape |
Printed circuit board terminal |
Import Country |
Direct Import from Japan |
Button Color |
Milky white |
Shape |
Round type |
Compatible Panel Thickness (mm) |
0.5 - 3.2 |
Operation Ambient Temperature (°C) |
-25 to 60 (no icing) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Operating Ambient Humidity (% RH) |
30 to 85 (no condensation) |
Withstand voltage (V / min) |
(Switch section) Between live section and earth: AC2000, Between opposite polarity terminals: AC2000, Between same polarity terminals: AC1000 |
Vibration Resistance (Malfunction) (Hz) |
5 to 55, single amplitude 0.5 mm |
Button Specifications |
Illuminated lens |
Operations |
Momentary |
Mounting Hole (mm) |
Φ16.2 |
