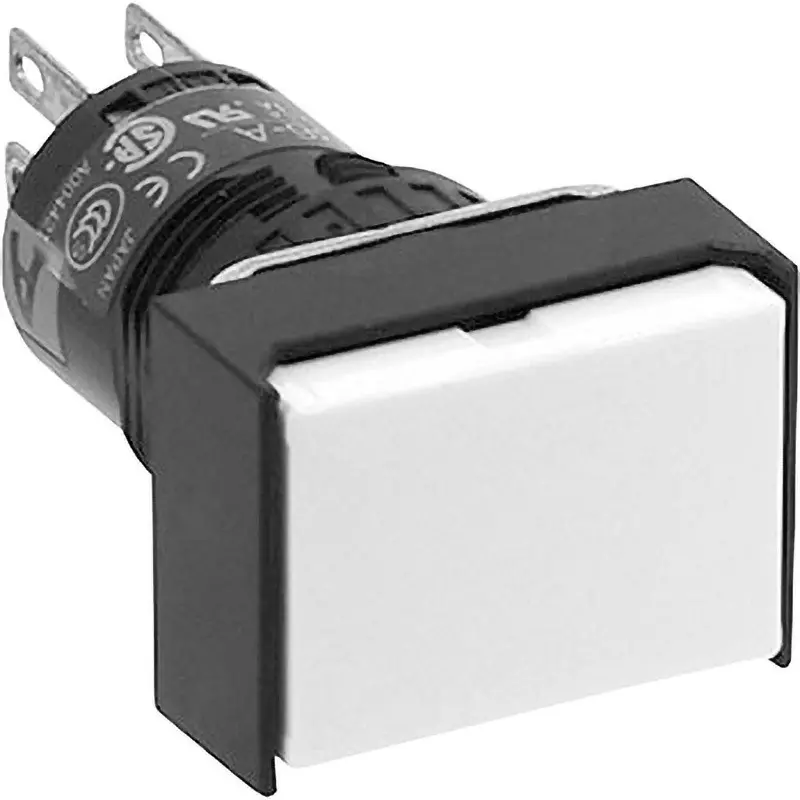

| Type of Product | A6 Series Push Button Switch (Long Square) |
| Model No | AB6H-A1PG |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
A6 Series Push Button Switch (Long Square) |
Model No |
AB6H-A1PG |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
1c |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-30-80 (no icing) |
Contact Material |
Gold on silver, crossbar contacts |
Monotaro ID |
59723377 |
Ambient Humidity to Use |
45% to 85% (with no condensation) |
Terminal Shape |
Solder terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Alternate |
Mounting Hole Diameter (Φmm) |
16.2(0 - 0.2) |
Operation Ambient Temperature (°C) |
-25 to 55 (no icing) |
Insulation_Resistance (MΩ) |
100 or more (with DC500V mega) |
Rated Carrying Current (A) |
3 |
Rated Insulation Voltage (V) |
250 |
Operation Mechanism |
Rectangular |
Type of Illumination |
Non-illuminated |
Color of Operating Part |
Green |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.75mm |
Vibration Resistance (Destruction) |
5-55Hz, single amplitude 0.75mm |
Shock Resistance (Malfunction) |
200m/s<sup>2</sup> |
Shock Resistance (m/s²) |
(Durability) 500 |
