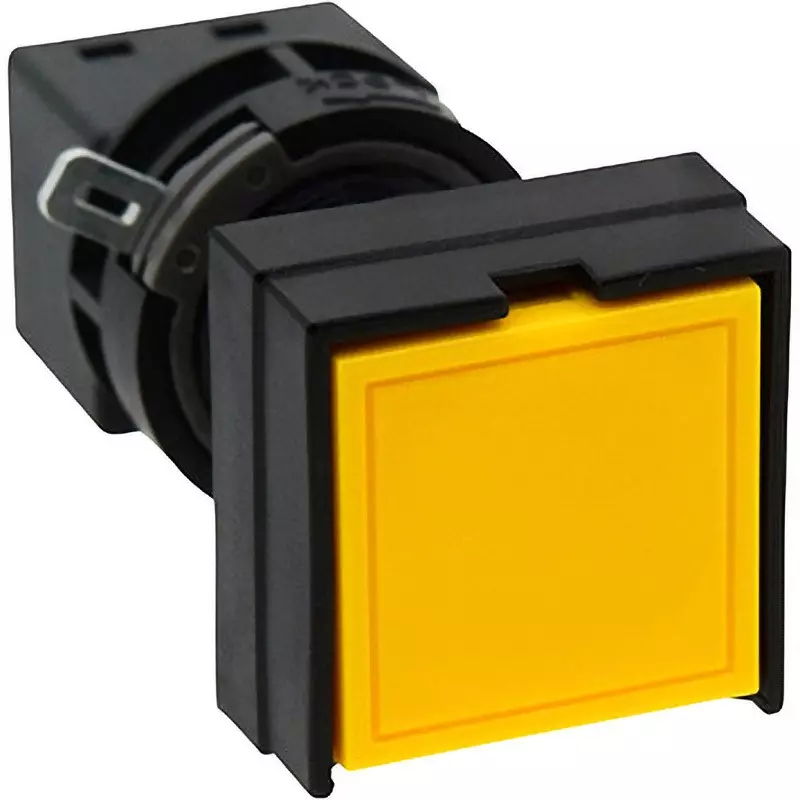

| Type of Product | Push Button Switch Flat Type (Square Type) |
| Model No | HA2B-M1C5Y |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Push Button Switch Flat Type (Square Type) |
Model No |
HA2B-M1C5Y |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
1c |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-30-80 (no icing) |
Contact Material |
Silver |
Monotaro ID |
60031063 |
Terminal Shape |
Soldering tab terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
16.2(0 - 0.2) |
Operation Ambient Temperature (°C) |
-25 to 55 (no icing) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Rated Carrying Current (A) |
5 |
Rated Insulation Voltage (V) |
250 |
Operating Ambient Humidity (% RH) |
30 to 85 (no condensation) |
Operation Mechanism |
Square (flat) |
Type of Illumination |
Non-illuminated |
Color of Operating Part |
Yellow |
Withstand voltage (V / min) |
Switch section: AC2500 (between charging section and earth), AC2500 (between opposite polarity terminals), AC1000 (between same polarity terminals) |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.5mm |
Vibration Resistance (Destruction) |
5-55Hz, single amplitude 0.5mm |
Button Specifications |
button |
