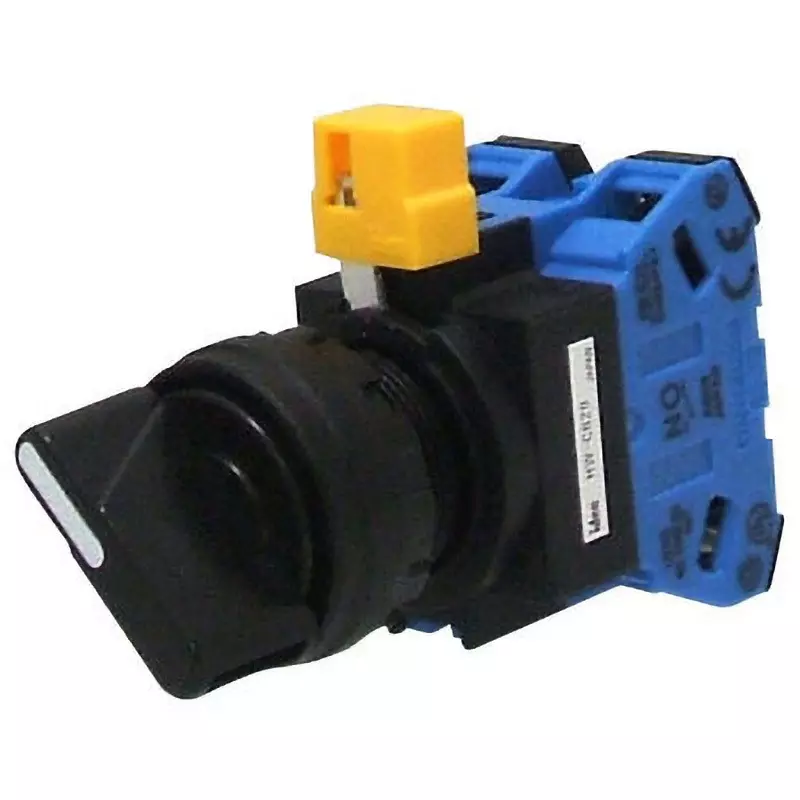

| Type of Product | Diameter 22 Hw1S Type / Arrow Type Handle Selector Switch |
| Model No | HW1S-21T20 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Diameter 22 Hw1S Type / Arrow Type Handle Selector Switch |
Model No |
HW1S-21T20 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
2a(20) |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-40 to 80 (but do not freeze) |
Contact Material |
Silver contacts |
Handle Color |
Black |
Monotaro ID |
60115142 |
Import Country |
Direct Import from Japan |
Mounting Hole Diameter (Φmm) |
22.3(0 - +0.4) |
Specifications |
Cam designation symbol: Unspecified |
Operation Ambient Temperature (°C) |
-25 to 60 (but do not freeze) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Rated Carrying Current (A) |
10 |
Rated Insulation Voltage (V) |
600 |
Operating Ambient Humidity (% RH) |
45 to 85 (but no condensation) |
Notch Angle |
60 |
Number of Notches |
2 |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.5mm |
Name |
Selector switch (arrow handle) |
Vibration Resistance (Destruction) |
5-55Hz, single amplitude 0.5mm |
Direction Indication |
White |
Withstand voltage (V) |
Between live and non-live parts: AC2500 for 1 minute |
