| Type of Product | X6 Series emergency stop push button switch |
| Model No | AB6E-3BV01PRM |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |

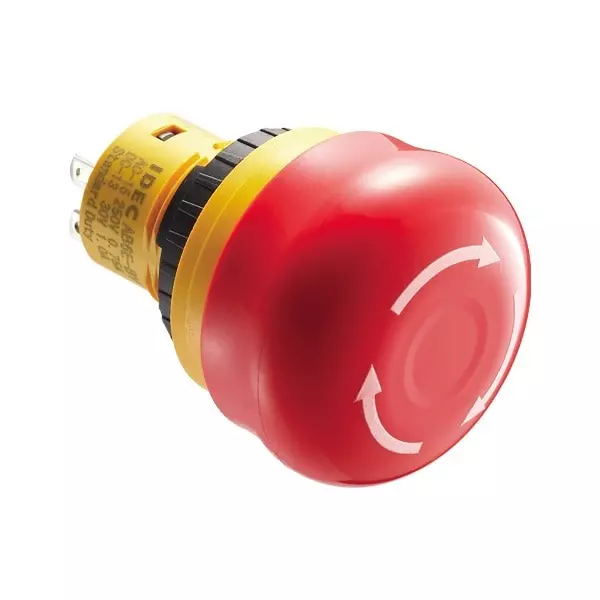

X6 Series emergency stop push button switch |
Model No |
AB6E-3BV01PRM |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-45 To 80°C (But Do Not Freeze) |
Monotaro ID |
47977197 |
Terminal Shape |
Solder Terminal |
Import Country |
Direct Import from Japan |
Mounting Hole Diameter (Φmm) |
16.2 mm (0 - 0.2) |
Button Shape |
Round (Φ30 Medium) |
Button Color |
Red |
Specifications |
Plain Typeminimum Direct Opening Force (N): 40Minimum Operating Distance To Minimum Direct Opening Function (Mm): 4.5Maximum Operating Distance (Mm): 4.5Overvoltage Category: Iiimpulse Withstand Voltage (Kv): 2.5 |
Operation Ambient Temperature (°C) |
-25 To 60°C (No Icing) |
Conditional Short Circuit Current (A) |
1000 |
Pollution Degree (Environment to Use) |
3 |
Insulation_Resistance (MΩ) |
100 MΩ or more (with DC500V mega) |
Rated Carrying Current (A) |
5A |
Main contact |
1b |
Operating Frequency (operation/hour) |
900 |
Rated Insulation Voltage (V) |
250 V |
Operating Ambient Humidity (% RH) |
45 To 85 (No Condensation) |
Type of Illumination |
Non-illuminated |
Short Circuit Protection Device |
250V/10A fuse (Type aM IEC60269-1/IEC60269-2) |
Mechanical Life (10,000 Times) |
More than 10 |
