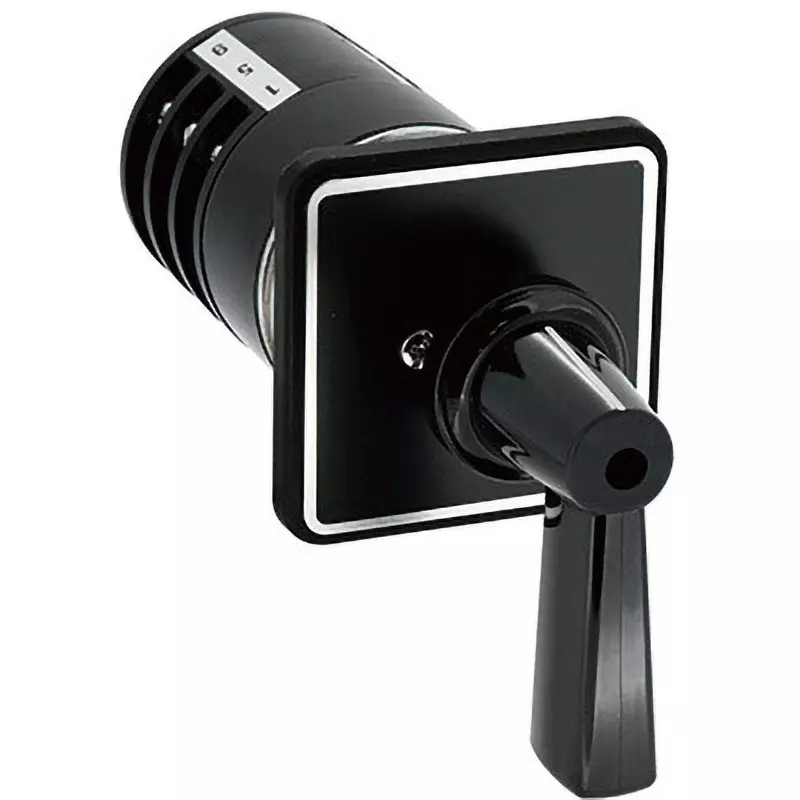

| Type of Product | Uc Series Cam Switch |
| Model No | UCR129-L12-P1B-C1002 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Uc Series Cam Switch |
Model No |
UCR129-L12-P1B-C1002 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
Double cut-off slow action with 2 contacts per stage |
Protection Class |
IP40(IEC 60529) |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Silver contacts |
Handle Color |
Black |
Monotaro ID |
6457657 |
Import Country |
Direct Import from Japan |
Specifications |
Push/Pull position: L12 Circuit number: C1002 |
Operation Ambient Temperature (°C) |
-20 to 50 (but not freezing) |
Insulation_Resistance (MΩ) |
100 (at DC500V mega) |
Rated Carrying Current (A) |
10 |
Rated Insulation Voltage (V) |
600 |
Operating Ambient Humidity (% RH) |
45 to 85 (no condensation) |
Electrical Life (10,000 Times) |
25 or more |
Compatible Handle |
P1 |
Notch Angle |
90 |
Operation method |
Automatic retractable type |
Number of Notches |
2 |
Mechanical Life (10,000 Times) |
25 or more |
No. of Tiers |
1 stage |
Withstand voltage (V / min) |
Between live parts and non-live parts: AC2500 |
