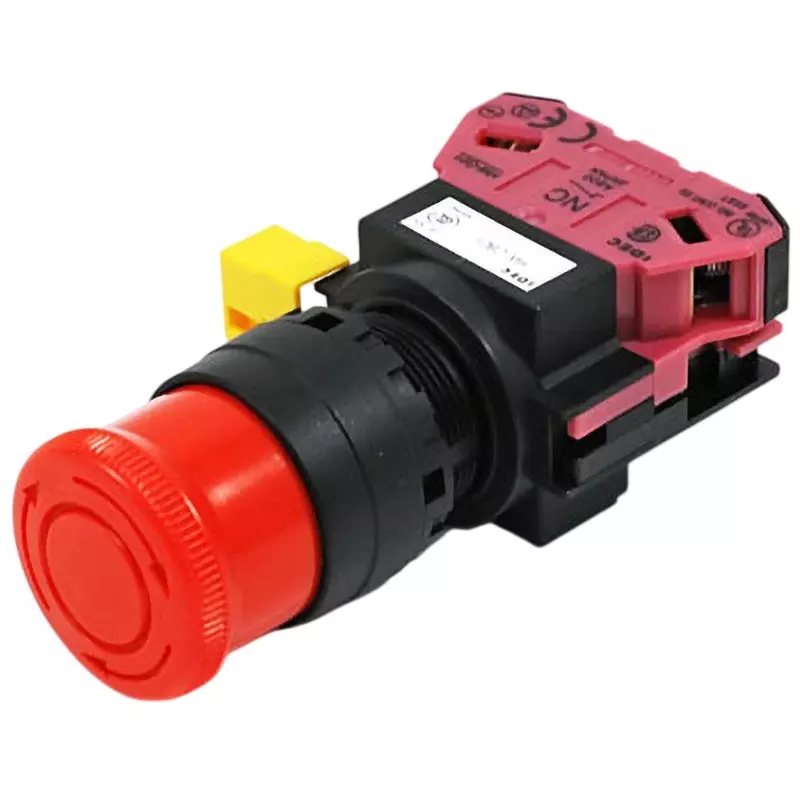

| Type of Product | Diameter 22 Hw Series Emergency Stop Push Button Switch Push Lock Return Reset Switch |
| Model No | HW1B-V301R |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Diameter 22 Hw Series Emergency Stop Push Button Switch Push Lock Return Reset Switch |
Model No |
HW1B-V301R |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
1b |
Type |
Finished product |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Silver contacts |
Monotaro ID |
6916786 |
Terminal Shape |
M3.5 screw terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Push lock turn reset |
Mounting Hole Diameter (Φmm) |
22.3(0 - +0.4) |
Button Shape |
Medium (Φ29) |
Button Color |
Red |
Operation Ambient Temperature (°C) |
-25 to 60 (no icing) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Rated Carrying Current (A) |
10 |
Rated Insulation Voltage (V) |
600 |
Type of Illumination |
Non-illuminated |
Short Circuit Protection Device |
250V/10A fuse |
Vibration Resistance (Malfunction) |
5 to 55Hz, single amplitude 0.5mm |
Name |
Emergency stop pushbutton switch |
Vibration Resistance (Destruction) |
30Hz, single amplitude 1.5mm |
