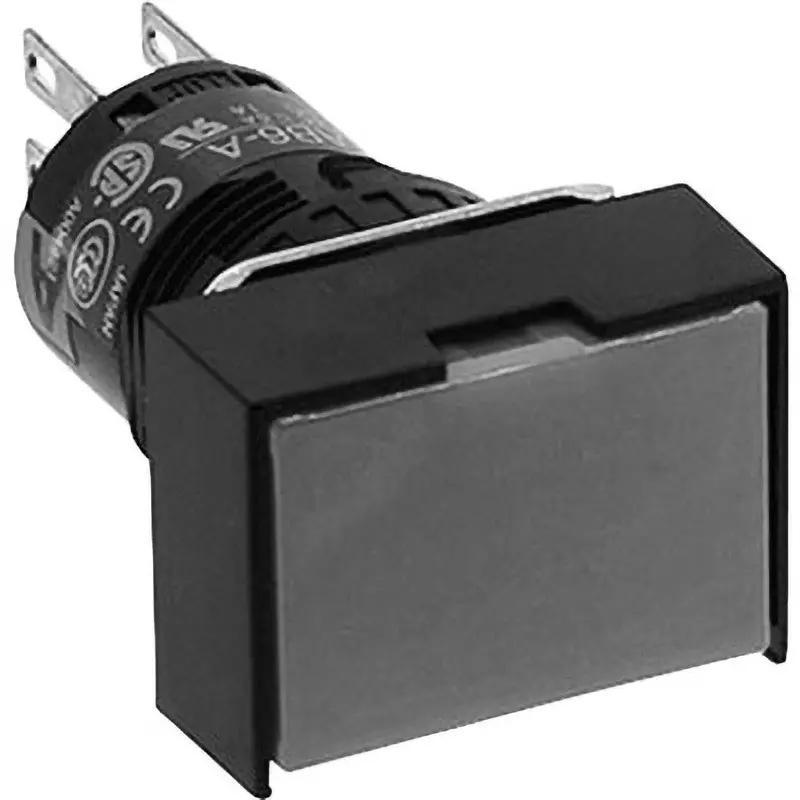

| Type of Product | A6 Series Push Button Switch (With Long-Angle 3-Way Barrier) |
| Model No | AB6G-A1LA |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
A6 Series Push Button Switch (With Long-Angle 3-Way Barrier) |
Model No |
AB6G-A1LA |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
1c |
Protection Class |
IP40 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-30-80 (no icing) |
Contact Material |
Gold on silver, crossbar contacts |
Monotaro ID |
59722345 |
Terminal Shape |
Solder terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Alternate |
Mounting Hole Diameter (Φmm) |
16.2(0 - 0.2) |
Operation Ambient Temperature (°C) |
-25 to 55 (no icing) |
Insulation_Resistance (MΩ) |
100 or more (with DC500V mega) |
Rated Carrying Current (A) |
3 |
Rated Insulation Voltage (V) |
250 |
Operating Ambient Humidity (% RH) |
45 to 85 (no condensation) |
Operation Mechanism |
Rectangular type with barriers on three sides |
Type of Illumination |
Non-illuminated |
Color of Operating Part |
Amber |
Withstand voltage (V / min) |
Switch section: AC2000 (between charging section and non-charging section), AC2000 (between terminals of different polarity), AC1000 (between terminals of the same polarity), AC1500 (between contact terminal and lamp terminal) |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.75mm |
Vibration Resistance (Destruction) |
5-55Hz, single amplitude 0.75mm |
Button Specifications |
Illuminated lens |
