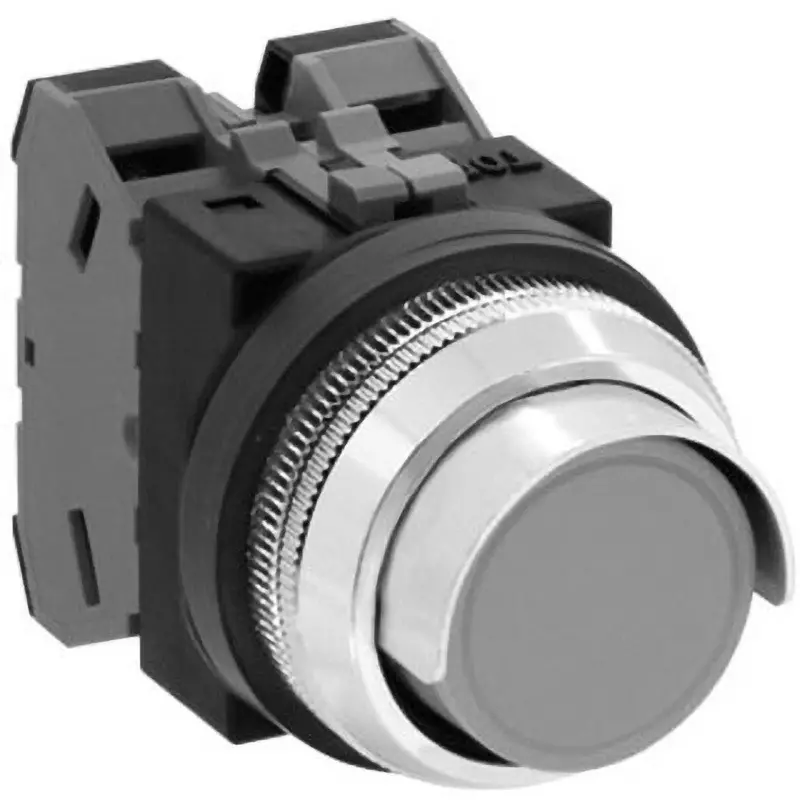

| Type of Product | Diameter 30 Push Button Switch (With Protruding Shape And Half Guard) |
| Model No | ABN2G10R |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Diameter 30 Push Button Switch (With Protruding Shape And Half Guard) |
Model No |
ABN2G10R |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
1a |
Type |
Non-illuminated type |
Protection Class |
IP65 |
Standard |
UL standard (file No.E68961), CSA standard (file No.LR21451) EN standard (EN60947-5-1) |
Storage Temperature |
-40 to 80 (no icing) |
Monotaro ID |
6935363 |
Ambient Humidity to Use |
45% to 85% (with no condensation) |
Terminal Shape |
Screw terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
30 |
Button Shape |
Round (with protruding half guard) |
Button Color |
Red |
Operation Ambient Temperature (°C) |
-25 to 70 (no icing) |
Ring Material |
Metal (Chrome plating) |
Rated Operating Current (A) |
Resistance load: DC24V: 10, DC48V: 5, DC110V / 125V: 2.2, AC24V: 10, AC50V: 10, AC110V / 125V: 10, AC220V / 250V: 6, AC440V: 2 |
