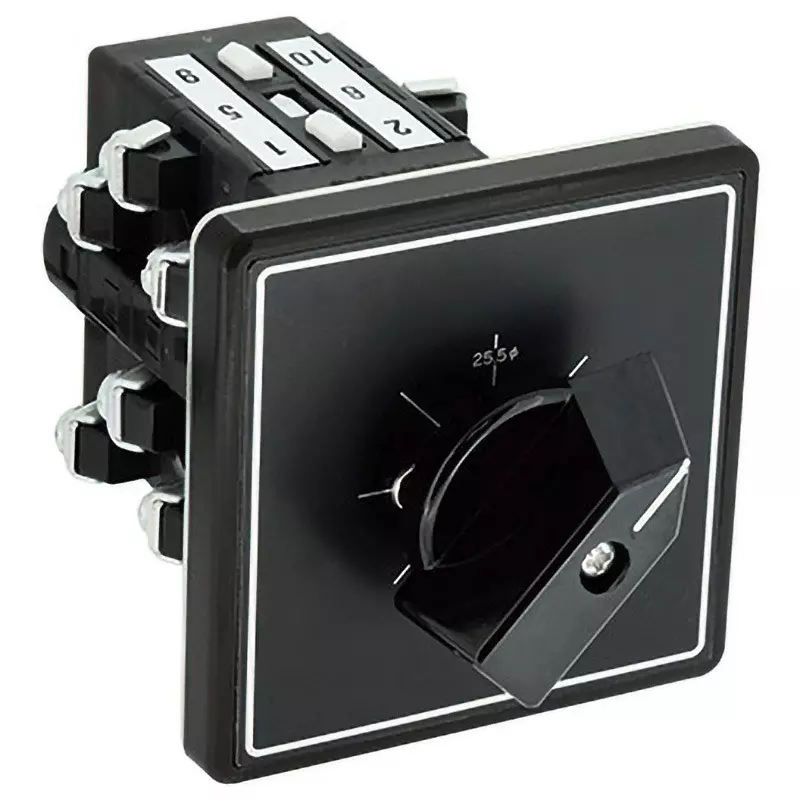

| Type of Product | Cs Series Cam Switch Ucsqo Type P Handle |
| Model No | UCSQO-244-P2B-C2008 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Cs Series Cam Switch Ucsqo Type P Handle |
Model No |
UCSQO-244-P2B-C2008 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
Double cut-off slow action with 2 contacts per stage |
Suitable For |
ACSNO type, UCSQO type, UCSQM type |
Protection Class |
IP40(IEC 60529) |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Silver contacts |
Handle Color |
Black |
Monotaro ID |
60491462 |
Import Country |
Direct Import from Japan |
Operation Ambient Temperature (°C) |
-20 to 50 (but not freezing) |
Insulation_Resistance (MΩ) |
100 (DC500V mega) |
Rated Carrying Current (A) |
10 |
Rated Insulation Voltage (V) |
600 |
Operating Ambient Humidity (% RH) |
45 to 85 (no condensation) |
Compatible Handle |
P2 |
Notch Angle |
45 |
Operation method |
Each position stop type |
Number of Notches |
4 |
No. of Tiers |
2 stages (contact block) |
Withstand voltage (V / min) |
Between live parts and non-live parts: AC2500 |
Circuits |
Number: C2008 |
