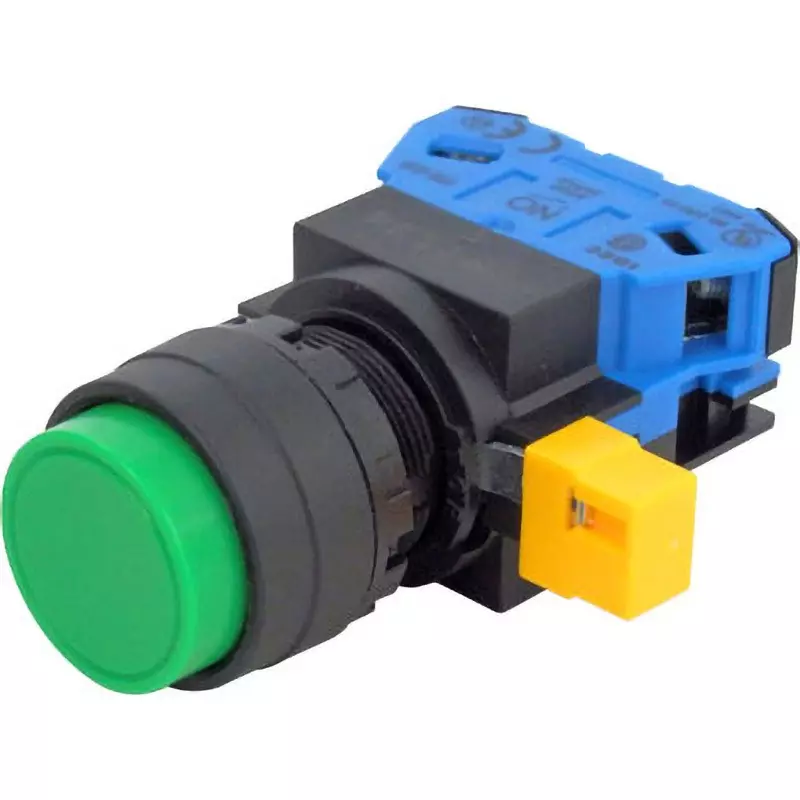

| Type of Product | Diameter 22 Hw Series Push Button Switch Protruding |
| Model No | HW1B-M210G |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Diameter 22 Hw Series Push Button Switch Protruding |
Model No |
HW1B-M210G |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
1a |
Type |
Non-illuminated type |
Protection Class |
IP65 |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Silver contacts |
Monotaro ID |
6919351 |
Ambient Humidity to Use |
45% to 85% (with no condensation) |
Terminal Shape |
Screw terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
22 |
Button Shape |
Round (projection) |
Button Color |
Green |
Operation Ambient Temperature (°C) |
-25 to 60 (no icing) |
Ring Material |
Made of resin |
Rated Operating Current (A) |
Resistance load: DC24V: 8, DC48V: 4, DC110V: 2.2, DC220V: 1.1, AC24V: 10, AC50V: 10, AC110V: 10, AC220V: 6, AC440V: 2 |
Terminal Screw |
M3.5 |
