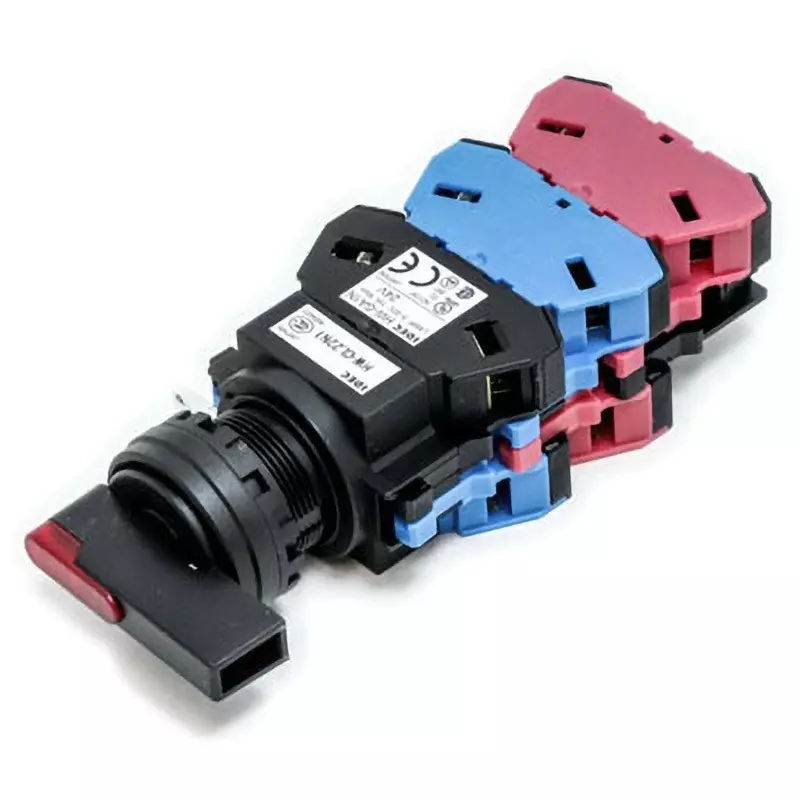

| Type of Product | Hw Series Selector Switch |
| Model No | HW1F33L22N1Q4R |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Hw Series Selector Switch |
Model No |
HW1F33L22N1Q4R |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
2a-2b |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Silver contacts |
Monotaro ID |
9511864 |
Import Country |
Direct Import from Japan |
Specifications |
Φ22 selector switch standard type Return direction: both returns |
Operation Ambient Temperature (°C) |
-25-50 (no icing) |
Insulation_Resistance (MΩ) |
100 or more (with DC500V mega) |
Rated Carrying Current (A) |
10 |
Rated Insulation Voltage (V) |
600 |
Operating Ambient Humidity (% RH) |
45 to 85 (no condensation) |
Operation Mechanism |
Lever type |
Notch Angle |
45 |
Operation method |
Spring return type |
Number of Notches |
3 |
Withstand voltage (V / min) |
Between live parts and non-live parts: AC2500 (however, AC2000 for direct lighting units) |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.5mm |
Vibration Resistance (Destruction) |
30Hz, 1.5mm single amplitude |
Illuminated Colors |
Red |
Rated Operating Voltage (V) |
AC/DC24 (lighting part) |
