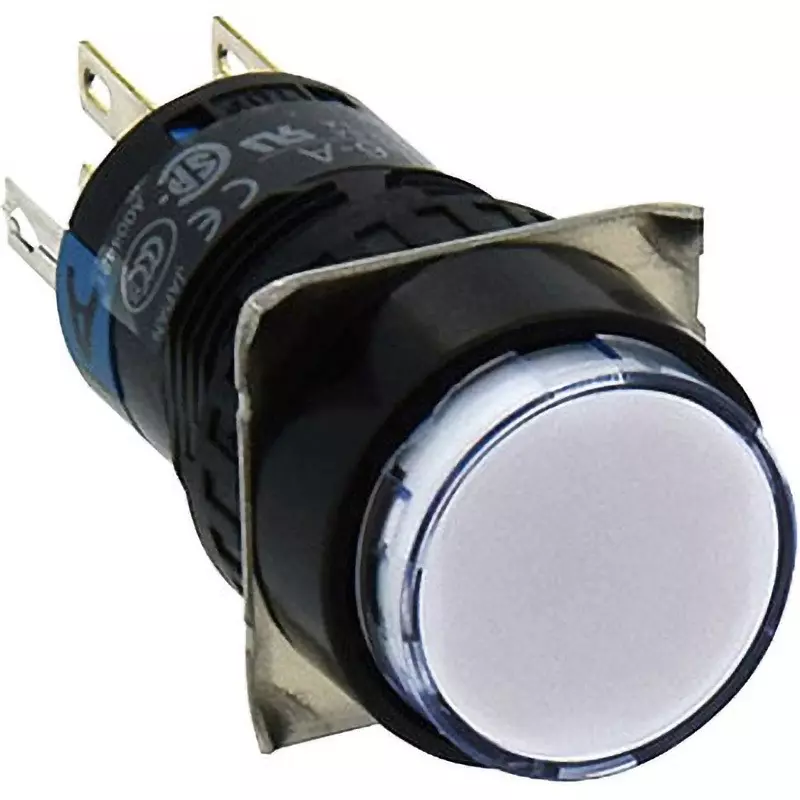

| Type of Product | A6 Series Illuminated Pushbutton Switch (Round) |
| Model No | AL6M-A11JW |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
A6 Series Illuminated Pushbutton Switch (Round) |
Model No |
AL6M-A11JW |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
1c |
Type |
Illuminated |
Protection Class |
IP40 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-30-80 (no icing) |
Monotaro ID |
59767985 |
Ambient Humidity to Use |
45% to 85% (with no condensation) |
Terminal Shape |
Solder terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Alternate |
Mounting Hole Diameter (Φmm) |
16 |
Button Shape |
Round |
Operation Ambient Temperature (°C) |
-25 to 55 (no icing) |
Insulation_Resistance (MΩ) |
100 or more (with DC500V mega) |
Type of Illumination |
LED |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.75mm |
Vibration Resistance (Destruction) |
5-55Hz, single amplitude 0.75mm |
Shock Resistance (Malfunction) |
200m/s<sup>2</sup> |
Shock Resistance (m/s²) |
(Durability) 500 |
Nameplate Dimensions (mm) |
Φ13.7 |
Service Life |
Mechanical: 100,000 times or more, Electrical: 100,000 times or more (opening / closing frequency 1200 times / hour) |
Engraving Area (mm) |
Φ12 |
