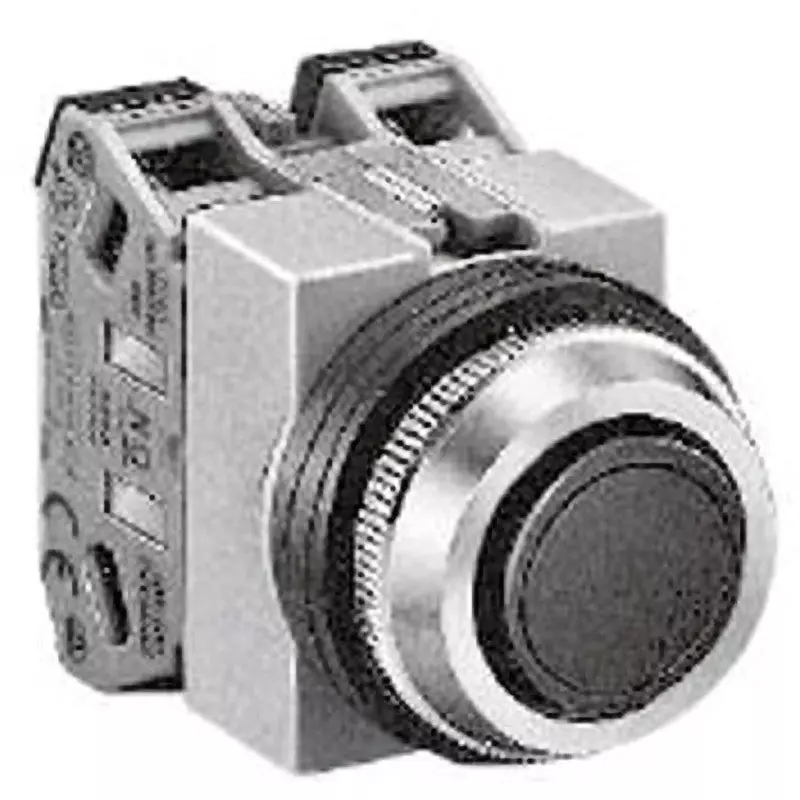

| Type of Product | Diameter 25 Tws Series Push Button Switch (Flat Type) |
| Model No | ABS111NB |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Diameter 25 Tws Series Push Button Switch (Flat Type) |
Model No |
ABS111NB |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
1a1b |
Working Current |
AC-12：24V/10A, 50V/10A, 110V/10A, 220V/6A, 440V/2AC-15：24V/10A, 50V/7A, 110V/5A, 220V/3A, 440V/1DC-12：24V/10A, 48V/5A, 110V/2.2A, 220V/1.1DC-13：24V/5A, 48V/2A, 110V/1.1A, 220V/0.6 A |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Standard |
UL, CSA, TUV, CCC |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Silver |
Monotaro ID |
31654133 |
Ambient Humidity to Use |
45% to 85% (with no condensation) |
Terminal Shape |
M3.5 screw terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
25.5(0 - 0.5) |
Button Shape |
Round (flat) |
Button Color |
Black |
Operation Ambient Temperature (°C) |
-25-50 (no icing) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Rated Carrying Current (A) |
10 |
Rated Insulation Voltage (V) |
600 |
Type of Illumination |
Non-illuminated |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.5mm |
Vibration Resistance (Destruction) |
30Hz, 1.5mm single amplitude |
