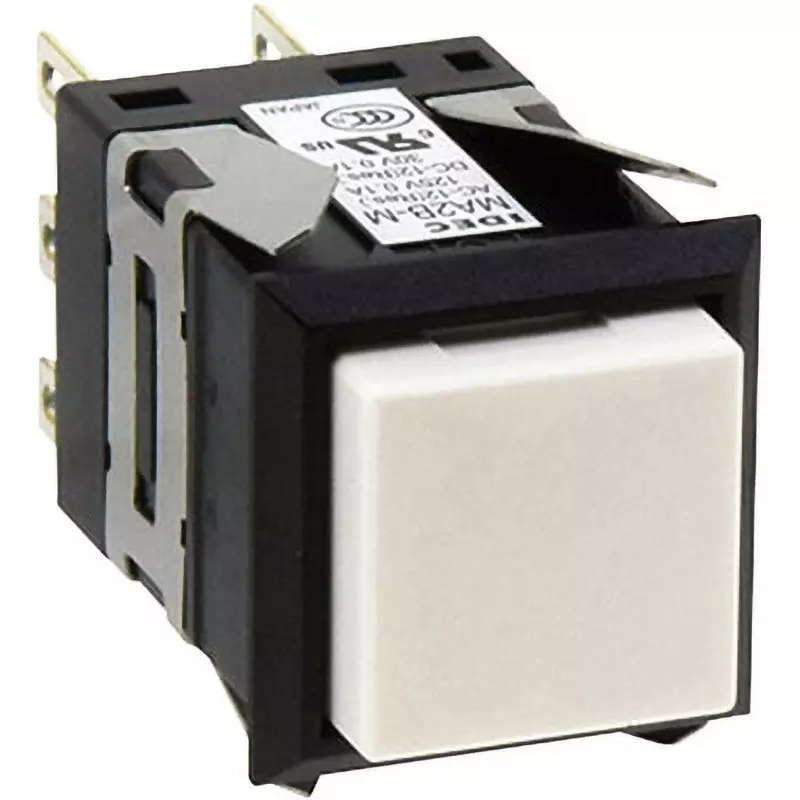

| Type of Product | Ma Series Push Button Switch (Square) |
| Model No | MA2B-M219W |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Ma Series Push Button Switch (Square) |
Model No |
MA2B-M219W |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
2c |
Type |
Non-illuminated type |
Protection Class |
IP40 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Gold contacts |
Monotaro ID |
60378227 |
Terminal Shape |
Soldering tab 110 terminal |
Import Country |
Direct Import from Japan |
Button Color |
White |
Shape |
Square |
Specifications |
Square body |
Operation Ambient Temperature (°C) |
-25 to 55 (no icing) |
Body Color |
Black |
Insulation_Resistance (MΩ) |
100 or more (with DC500V mega) |
Withstand voltage (V / min) |
(Switch section) Between live and non-live parts: AC2000, Between opposite polarity terminals: AC2000, Between same polarity contact terminals: AC1000, Between contact terminal and lamp terminal: AC2000 |
Button Specifications |
button |
Operations |
Momentary |
Light Source |
LED unit |
Size (mm) |
Φ13 (illumination surface) |
Flange Size (mm) |
Φ18 |
Flange |
Φ18mm |
