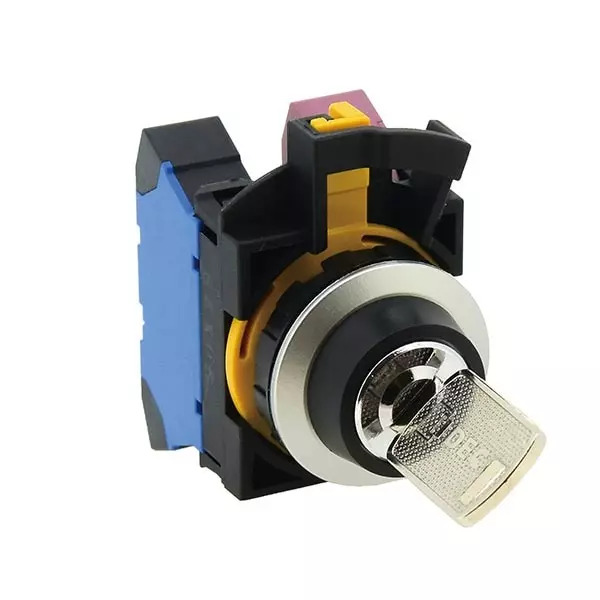

| Type of Product | Flash Silhouette CW Series Key Selector Switch |
| Model No | CW4K-2AP11 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Flash Silhouette CW Series Key Selector Switch |
Model No |
CW4K-2AP11 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
1A1B |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-40 To 80°C (No Icing) |
Monotaro ID |
48061608 |
Terminal Shape |
Push-In Terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Stop At Each Position (Manual) |
Mounting Hole Diameter (Φmm) |
22.3 mm (0 - 0.4) |
Specifications |
Overvoltage Category: Ii Impulse Withstand Voltage (Kv): 2.5 Recommended Lock Nut Tightening Torque (N・M): 1.2 |
Operation Ambient Temperature (°C) |
-25 To 60°C (No Icing) |
Pollution Degree (Environment to Use) |
3 |
Insulation_Resistance (MΩ) |
100 MΩ or more (with DC500V mega) |
Rated Carrying Current (A) |
10A |
Rated Insulation Voltage (V) |
300 V |
Operation Mechanism |
With Key |
Notch Angle |
90° |
Number of Notches |
2 |
Vibration Resistance (Malfunction) |
5-55 Hz, Single Amplitude 0.5 mm |
Name |
Selector Switch |
Vibration Resistance (Destruction) |
30 Hz, 1.5 mm Single Amplitude |
