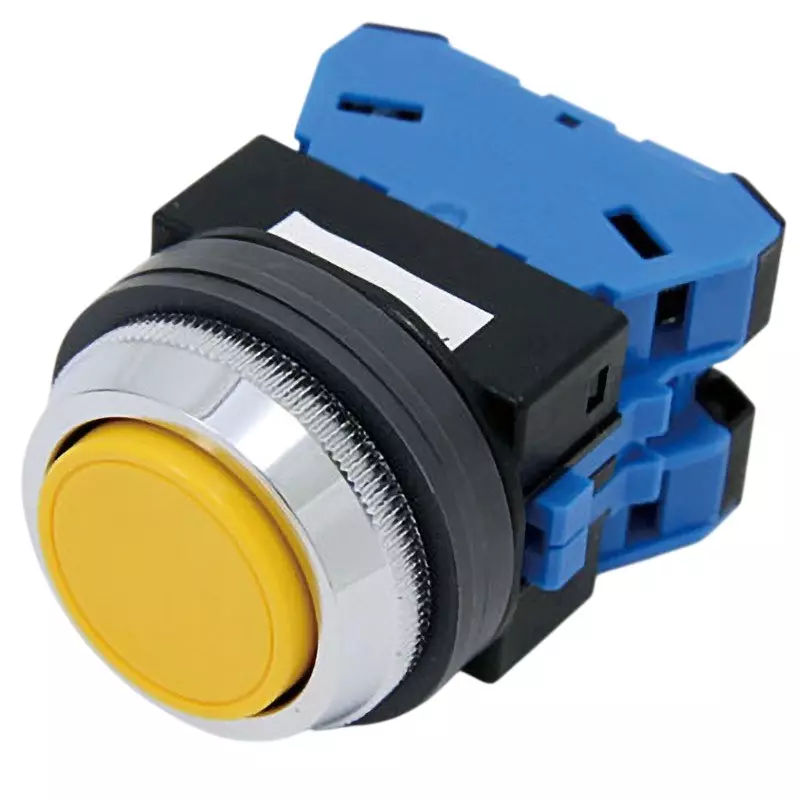

| Type of Product | Pushbutton Switch (Flat Type) |
| Model No | ABN120Y |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Pushbutton Switch (Flat Type) |
Model No |
ABN120Y |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
2a |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Standard |
UL standard (File No.E68961), CSA standard (File No.LR21451), EN standard (EN60947-5-1) |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Silver |
Monotaro ID |
6934864 |
Ambient Humidity to Use |
45% to 85% (with no condensation) |
Terminal Shape |
M3.5 screw terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
30.5(0 - 0.5) |
Button Shape |
Round (flat) |
Button Color |
Yellow |
Operation Ambient Temperature (°C) |
-25 to 70 (no icing) |
Rated Operating Current (A) |
Resistance load: DC24V: 10, DC48V: 5, DC110V / 125V: 2.2, AC24V: 10, AC50V: 10, AC110V / 125V: 10, AC220V / 250V: 6, AC440V: 2 |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Rated Carrying Current (A) |
10 |
Rated Insulation Voltage (V) |
600 |
Type of Illumination |
Non-illuminated |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.5mm |
Vibration Resistance (Destruction) |
30Hz, 1.5mm single amplitude |
