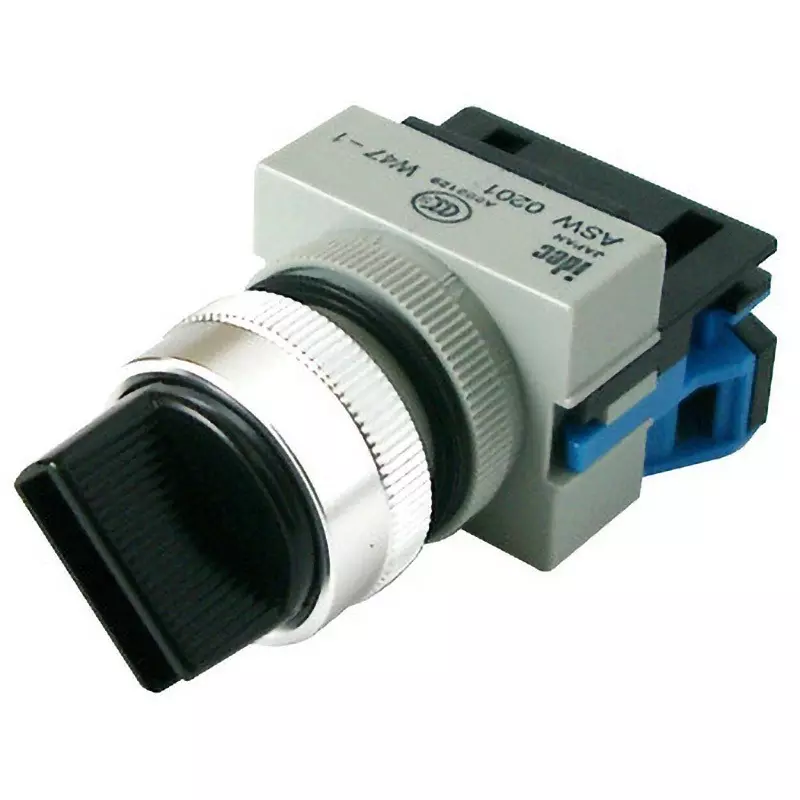

| Type of Product | Dia. 22 Tw Series Asw Type / Arrow Handle Selector Switch |
| Model No | ASW320-301 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Dia. 22 Tw Series Asw Type / Arrow Handle Selector Switch |
Model No |
ASW320-301 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
2a |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Silver |
Handle Color |
Black |
Monotaro ID |
59955971 |
Terminal Shape |
M3.5 screw terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Stop at each position (manual) |
Mounting Hole Diameter (Φmm) |
22.3(0 - 0.4) |
Operation Ambient Temperature (°C) |
-25-50 (no icing) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Rated Carrying Current (A) |
10 |
Rated Insulation Voltage (V) |
600 |
Notch Angle |
45 |
Number of Notches |
3 |
Withstand voltage (V / min) |
AC2500 (between charged and non-charged parts) |
Vibration Resistance (Malfunction) |
5 to 50 Hz, single amplitude 0.5 mm |
Vibration Resistance (Destruction) |
30Hz, 1.5mm single amplitude |
Cap Color |
White (directional cap) |
Circuits |
Number 301 |
