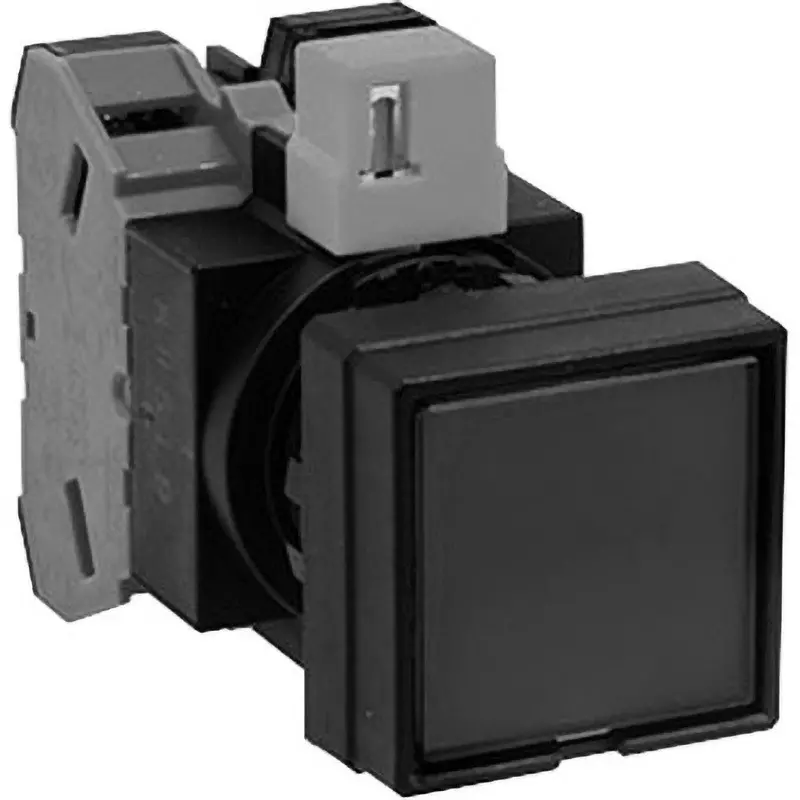

| Type of Product | Hw Series Illuminated Pushbutton Switch (Square Flat Led) (Momentary Type) |
| Model No | HW2L-M110Q4PW |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Hw Series Illuminated Pushbutton Switch (Square Flat Led) (Momentary Type) |
Model No |
HW2L-M110Q4PW |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
1a |
Type |
Finished product |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Silver contacts |
Monotaro ID |
60122736 |
Terminal Shape |
M3.5 screw terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
22.3(0 - +0.4) |
Button Shape |
Flat type |
Button Color |
pure white |
Operation Ambient Temperature (°C) |
-25 to 60 (but do not freeze), Illumination unit -25 to 50 |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Rated Carrying Current (A) |
10 |
Rated Insulation Voltage (V) |
600 |
Type of Illumination |
LED |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.5mm |
Name |
Illuminated pushbutton switch |
Vibration Resistance (Destruction) |
30Hz, 1.5mm single amplitude |
Lamp Voltage (V) |
AC/DC24 |
