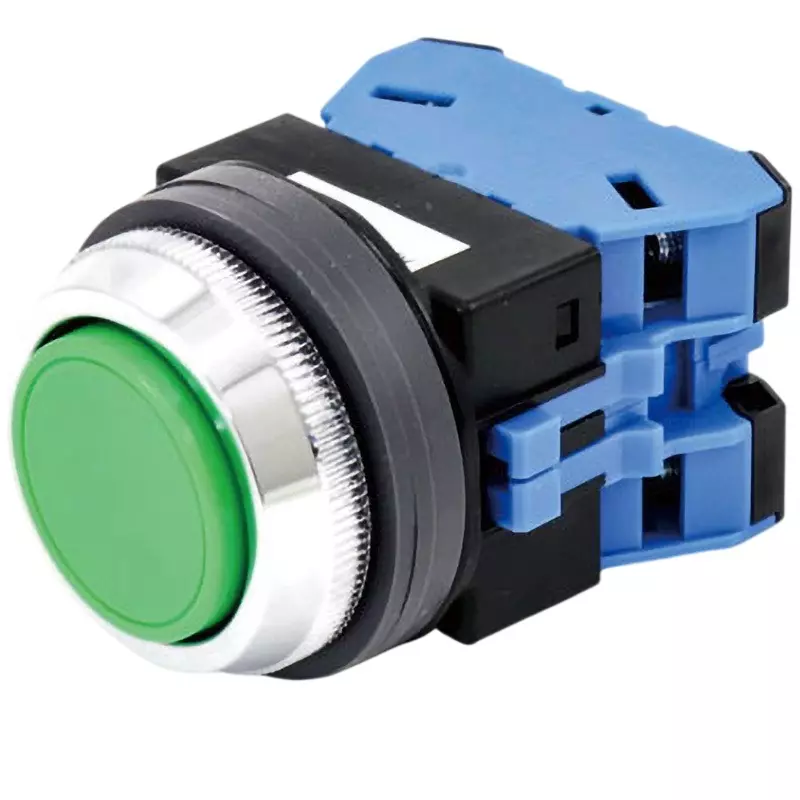

| Type of Product | Pushbutton Switch (Flat Type) |
| Model No | ABN120G |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Pushbutton Switch (Flat Type) |
Model No |
ABN120G |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
2a |
Protection Class |
IP65 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Standard |
UL standard (File No.E68961), CSA standard (File No.LR21451), EN standard (EN60947-5-1) |
Storage Temperature |
-40 to 80 (no icing) |
Contact Material |
Silver |
Monotaro ID |
65992937 |
Terminal Shape |
M3.5 screw terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
30.5(0 - 0.5) |
Button Shape |
Round (flat) |
Button Color |
Green |
Operation Ambient Temperature (°C) |
-25 to 70 (no icing) |
Ring Material |
Metal (chrome plated) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Rated Carrying Current (A) |
10 |
Rated Insulation Voltage (V) |
600 |
Type of Illumination |
Non-illuminated |
Withstand voltage (V / min) |
AC2500 (between live and non-live parts) / AC2000 (pilot light AC/DC 6V, 12V, 24V) |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.5mm |
Vibration Resistance (Destruction) |
30Hz, 1.5mm single amplitude |
