Ships within 19 days
Body Color
Outer Dimensions (mm)
Model No
View
View
View
View

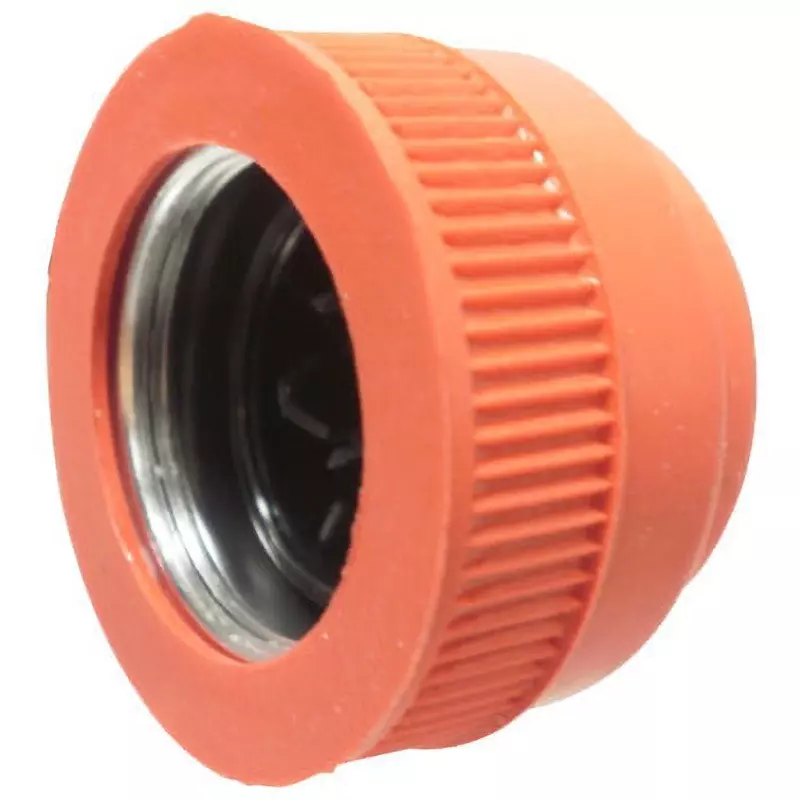

| Type of Product | Push Button Rubber Cover |
| Model No | OCW-11R |
| Material | Nitrile rubber |
| Country of Origin | Japan |
Type of Product |
Push Button Rubber Cover |
Model No |
OCW-11R |
Material |
Nitrile rubber |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Suitable For |
For Φ22 TW series protruding buttons |
Monotaro ID |
2493985 |
Import Country |
Direct Import from Japan |
Specifications |
The mounting ring is covered with a rubber cover, ensuring the waterproofing of the push button switch. The tip (button) is built into the rubber cover, so please remove the mounting ring and the tip from the switch body before use. Also, be sure to fit the tip (button) onto the shaft of the body before use. It also has good oil resistance. |
Operation Ambient Temperature (°C) |
-5 - 60 |

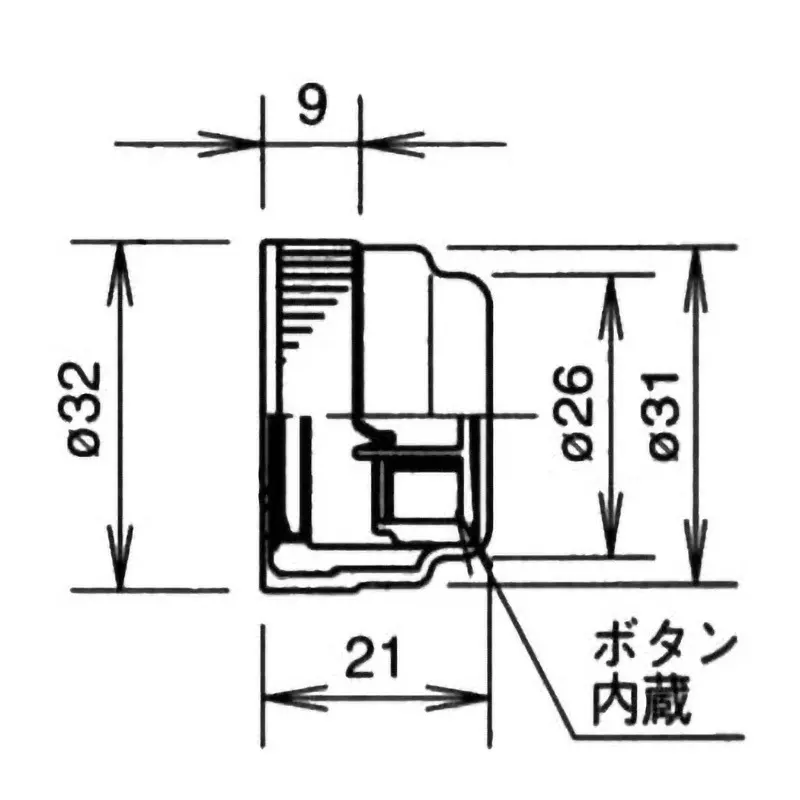

Outer Dimensions (mm) |
Φ32xH21 |
Dimension A |
Φ32 |
Dimension C |
Φ31 |
Dimension B |
21 |
Dimension d |
9 |
Body Color |
Red |
Dimension E |
Φ26 |
3 options, 3 price levels
Volume discounts
Price locked 30 days
