| Type of Product | Foot Switch |
| Model No | SFA-1W-2 |
| Material | (Return spring) SUS, (Bottom plate) SUS304 |
| Country of Origin | Japan |
Type of Product |
Foot Switch |
Model No |
SFA-1W-2 |
Material |
(Return spring) SUS, (Bottom plate) SUS304 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Kokusai Dengyo Co., Ltd. |
Color |
(Pedal) Blue, (Base) Ivory |
Contact Configuration |
1ax2 |
Type |
Waterproof / Double type |
Protection Class |
IPx7 |
Operating Force |
9.8N |
No. of Port |
2 stations |
Monotaro ID |
2025257 |
Ambient Humidity to Use |
30 to 75%RH |
Main Unit Material |
PBT resin |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Operation Ambient Temperature (°C) |
10 to 40 |

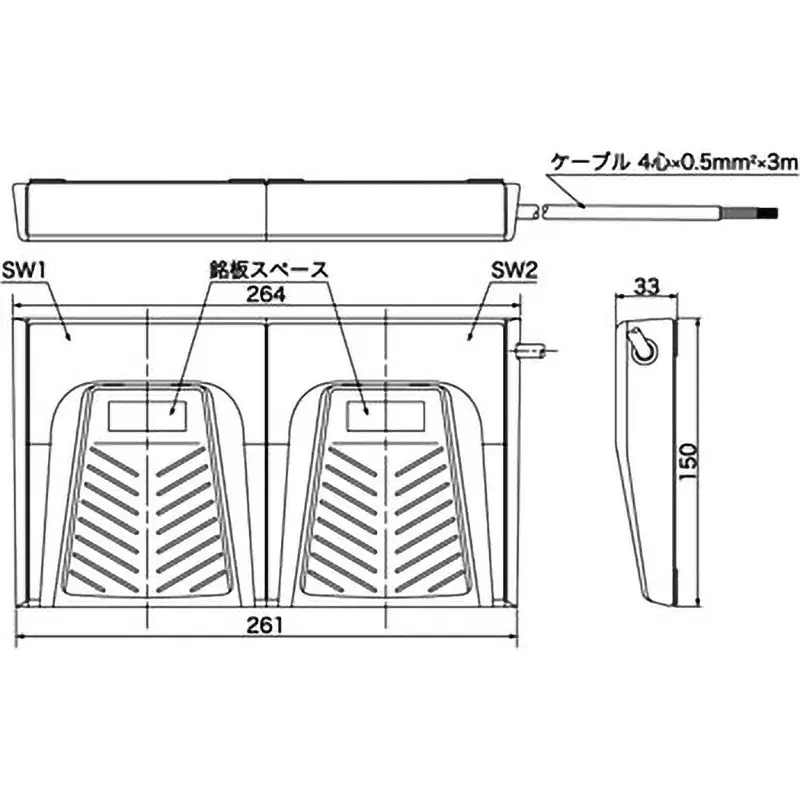

Dimension (mm) |
264(261)x150 |
Rated Carrying Current (A) |
0.01 (DC5 to 30V: Rated/Resistive load), 0.005/0.002/0.001 (DC6V/DC12V/DC24V: Minute rating/Resistive load) |
Cable Length (m) |
CE, UL 4 core x 0.5 mm² x 3m |
Height (mm) |
33 |
Rated Voltage (V) |
DC 5 to 30 |
Operating Patterns |
Momentary |
Rated Current (A) |
100mA (resistive load) |
Insulation Resistance (MOhm) |
100 or more (DC 500 V) |
Pedal Material |
PBT resin |
