| Type of Product | Foot Switch |
| Model No | SFG-1SG5 |
| Material | (Main body / cover) Aluminum alloy die casting, (Return spring) SUS, (Shaft) SUS, (Kick plate) ZAM |
| Country of Origin | Japan |
Type of Product |
Foot Switch |
Model No |
SFG-1SG5 |
Material |
(Main body / cover) Aluminum alloy die casting, (Return spring) SUS, (Shaft) SUS, (Kick plate) ZAM |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Kokusai Dengyo Co., Ltd. |
Color |
2.5YR / 13N-2.5 equivalent |
Contact Configuration |
1c |
Type |
Large, aluminum |
Application |
NC lathe, shearing machine, press machine, laser machine, etc. |
Protection Class |
IP47 |
Operating Force |
27N |
No. of Port |
1 train |
Switch Type |
Limit switch built-in basic type |
Monotaro ID |
2025135 |
Rating |
AC250V・10A, DC24V・1mA |
Ambient Humidity to Use |
85% RH or less |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Operation Ambient Temperature (°C) |
-5 to 40 |
Rated Carrying Current (A) |
10 (AC250/resistive load), 0.001 (DC24/resistive load) |
Withstand voltage (V / min) |
AC 2000 |
Mass (g) |
2000 |
Rated Voltage (V) |
AC250 (10A/resistive load), DC24 (1mA/resistive load) |
Operating Patterns |
Momentary |
Insulation Resistance (MOhm) |
100 or more (DC 500 V) |

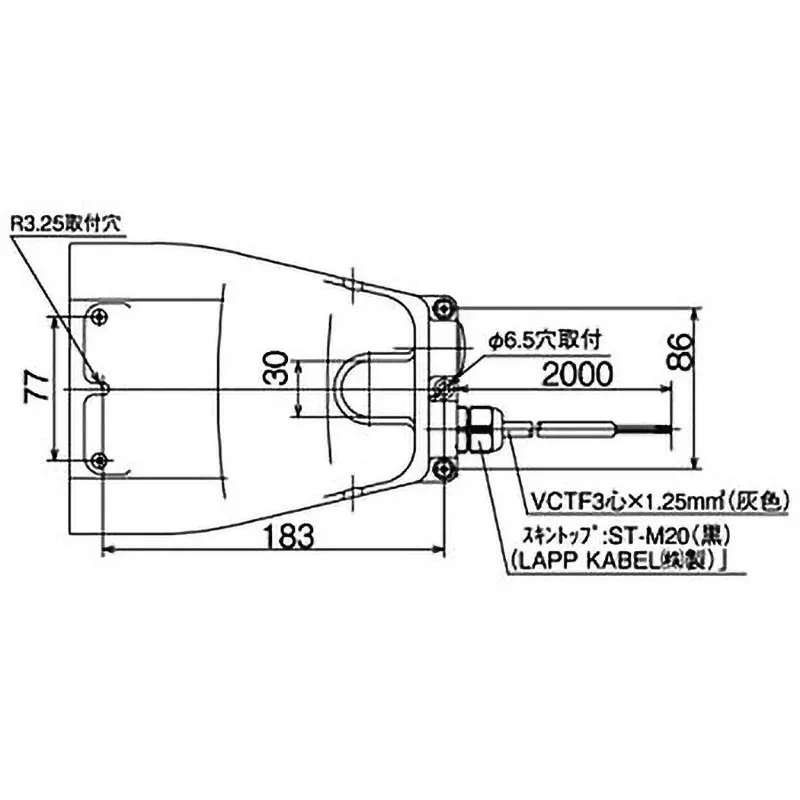

Cable |
VCTF 3 corex1.25 mm²x2m |
