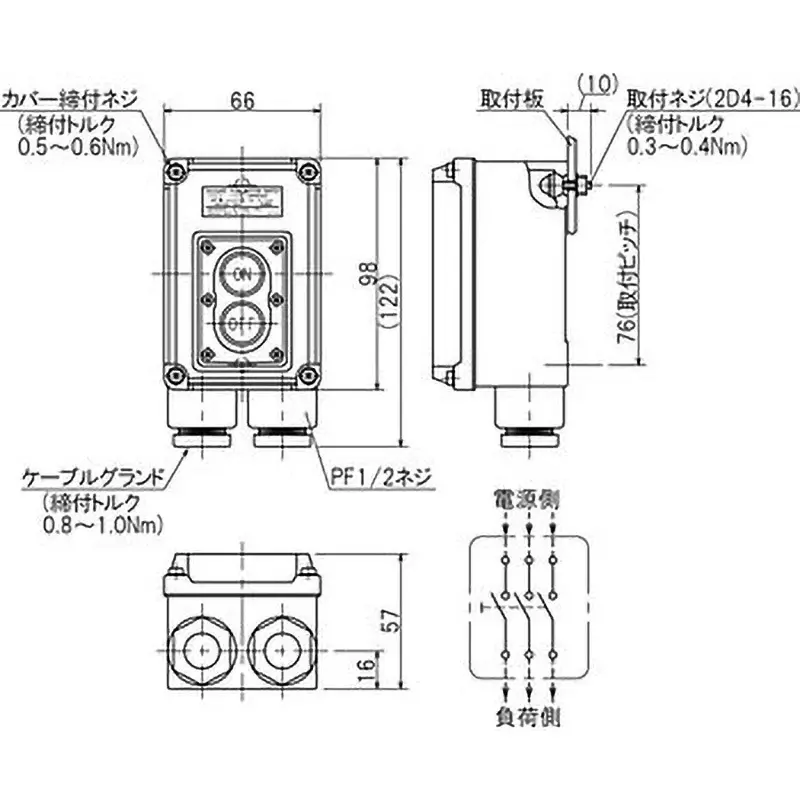

| Type of Product | Power Push Button Switch Immersion-Proof Type |
| Model No | MRW320 |
| Vibration Resistance | 16.7Hz Double amplitude 3mm |
| Shock Resistance | Impact acceleration 30G |
Type of Product |
Power Push Button Switch Immersion-Proof Type |
Model No |
MRW320 |
Vibration Resistance |
16.7Hz Double amplitude 3mm |
Shock Resistance |
Impact acceleration 30G |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Color |
Munsell N5.5 / 0 |
Protection Class |
IP67 |
No. of Pole |
3P (for three phase) |
Case Material |
Polypropylene resin |
Connection Type |
Surface mount type |
Monotaro ID |
32620384 |
Import Country |
Direct Import from Japan |
Shape |
Waterproof type |
Specifications |
Turn on to hold the circuit closed, press OFF to open the circuit |
Terminal Screw |
M4 |
Rated Carrying Current (A) |
20 |
Mass (g) |
205 |
Rated Voltage (V) |
220 VAC (maximum allowable voltage) 440 VAC |
Allowable Ambient Temperature (℃) |
-10 to +50 |
How to Operate |
2-button manual operation for direct on / off start (circuit on / off) |
Compatible Cable |
3.5 mm² |
Compatible Motor |
3Φ220/440V 3.7kW |
Opening / Closing Life (times) |
250,000 times or more (conditions conform to JISC4504) |
Rated Frequency (Hz) |
50/60 |
