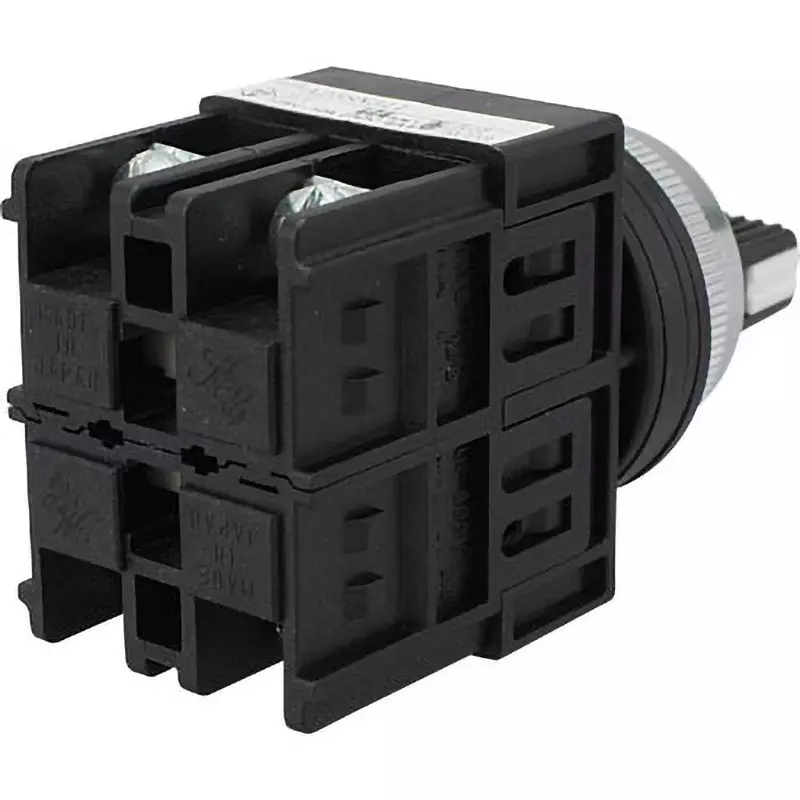

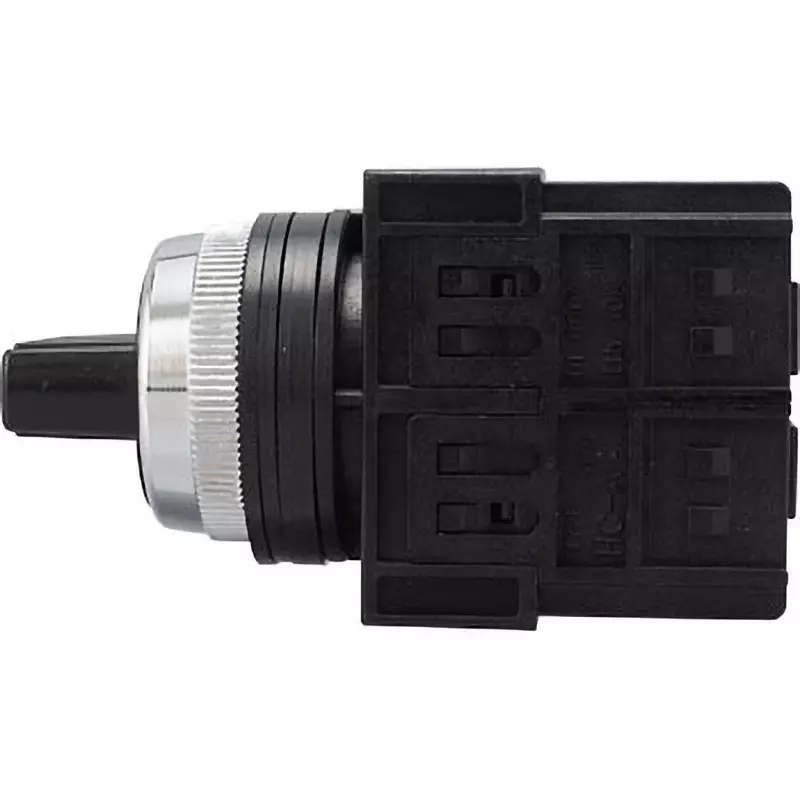

| Type of Product | Selector Switch Φ25, Knob Type, 3 Notches |
| Model No | MSS320N |
| Country of Origin | JAPAN |
| Name of Manufacturer/Packer/Importer | MonotaRO |
Type of Product |
Selector Switch Φ25, Knob Type, 3 Notches |
Model No |
MSS320N |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Contact Configuration |
2a |
Protection Class |
IP65 oil-proof type |
Monotaro ID |
37655895 |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Mounting Hole Diameter (Φmm) |
25 |
Button Color |
Black |
Ring Material |
Metal |
Rated Operating Current (A) |
AC-15 class (inductive load): 24V / 10, 48V / 10, 110V / 6, 220V / 4, 440V / 1.5 <br> DC-13 class (inductive load): 24V / 6, 48V / 2, 110V / 0.7, 220V / 0.3 <br> DC-12 class (resistive load): 24V / 6, 48V / 3, 110V / 2, 220V / 1 |
Rated Carrying Current (A) |
10 (contact part) |
Rated Insulation Voltage (V) |
AC/DC600 |
Notch Angle |
45° |
Number of Notches |
3 |
Operating Patterns |
3 notch manual reset |
Color (knob) |
White |
Contact Position No |
1, 2 |
