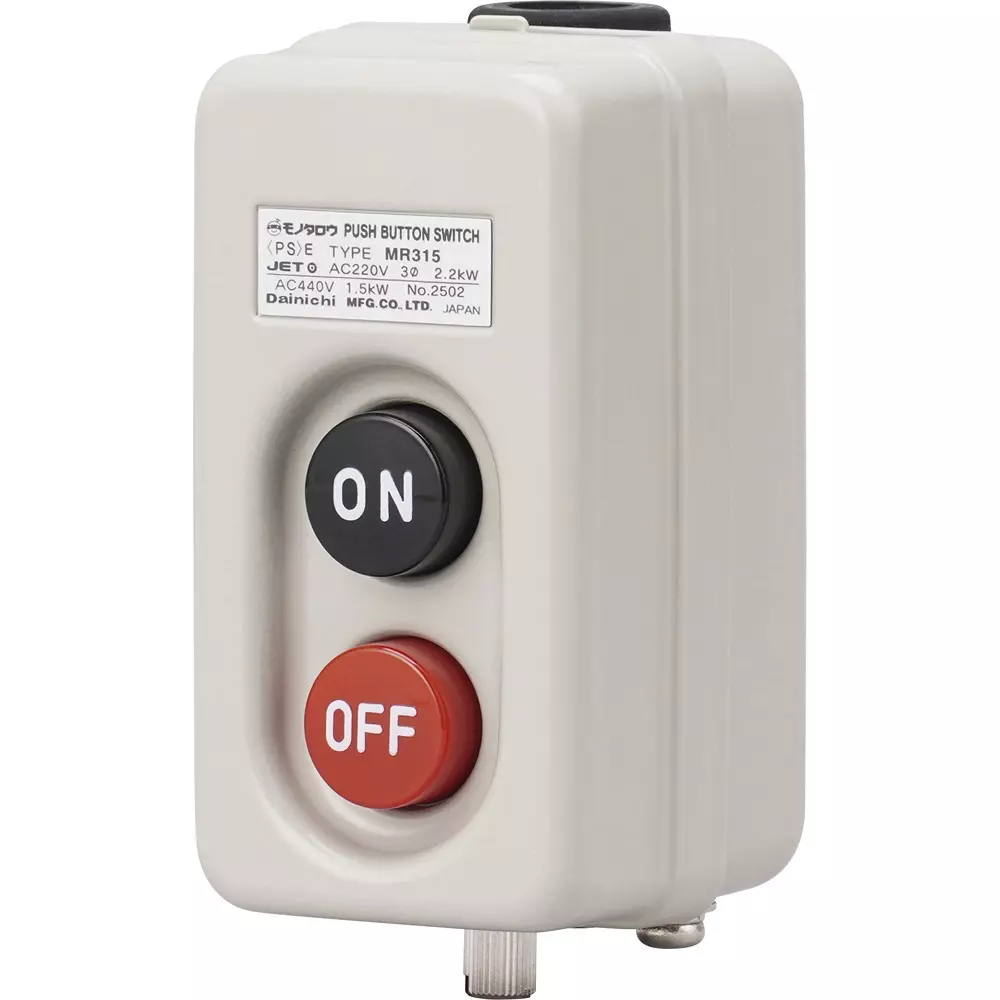

| Type of Product | Power Push Button Switch |
| Model No | MR315 |
| Vibration Resistance | 16.7Hz Double amplitude 3mm |
| Shock Resistance | Impact acceleration 30G |
Type of Product |
Power Push Button Switch |
Model No |
MR315 |
Vibration Resistance |
16.7Hz Double amplitude 3mm |
Shock Resistance |
Impact acceleration 30G |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Color |
Munsell 10GY6 / 0.5 |
Protection Class |
IP40 |
No. of Pole |
3P (for three phase) |
Case Material |
Steel plate |
Connection Type |
Surface mount type |
Monotaro ID |
32620375 |
Import Country |
Direct Import from Japan |
Shape |
Exposure type |
Specifications |
Turn on to hold the circuit closed, press OFF to open the circuit |
Terminal Screw |
M3.5 |
Rated Carrying Current (A) |
15 |
Mass (g) |
167 |
Rated Voltage (V) |
220 VAC (maximum allowable voltage) 440 VAC |
Allowable Ambient Temperature (℃) |
-10 to +50 |
How to Operate |
2-button manual operation for direct on / off start (circuit on / off) |
Compatible Cable |
2 mm² |
Compatible Motor |
3Φ220V 2.2kW 440V 1.5kW |
Opening / Closing Life (times) |
250,000 times or more (conditions conform to JISC4504) |
Rated Frequency (Hz) |
50/60 |
