| Operating Temperature Range | -25 to 70℃ |
| Type of Product | Tactile Switch |
| Model No | JB-15HANP2 |
| Mechanical Durability | 1000000 times or more |
Operating Temperature Range |
-25 to 70℃ |
Type of Product |
Tactile Switch |
Model No |
JB-15HANP2 |
Mechanical Durability |
1000000 times or more |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Type |
High profile type (high load type) |
Suitable For |
Cap (AT-4077), Holder (AT-4078), Button (AT-4058, AT-4059, AT-4140) |
Withstand Voltage |
250 V AC for 1 minute or more |
Monotaro ID |
38444971 |
Functional Operation |
OFF-<ON> (<> is momentary) |
Current Capacity |
3 VA Max. Dc (Applicable Voltage Range/0.1 V To 24 V, Applicable Current Range/10 mA to 125Ma) |
Contact Specifications |
Silver |

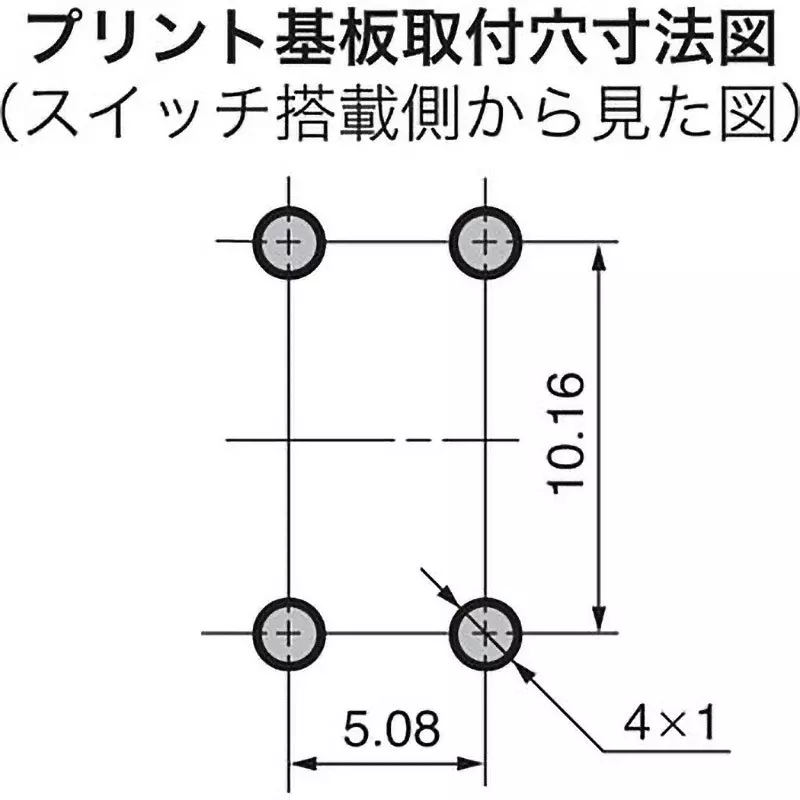

Terminal Shape |
PC terminal |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Specifications |
Bounce: 0.1msec or less (normally by manual operation) |
Circuits |
Single pole single throw |
Stroke (mm) |
0.3(+0.1/-0.15) |
Operating Force (N) |
2.7±0.7 |
Contact Resistance (ohm) |
50 or less (at 20 mV 10 mA) |
Insulation Resistance (MOhm) |
500 or more (250 V AC) |
Electrical Durability for Opening and Closing |
1000000 times or more |
Heat Resistance |
When using a soldering iron (by mounting the board) / Temperature 350°C or less within 3 seconds / When using a solder bath / Temperature 270°C or less within 5 seconds |
