Ships within 25 days
View
View
View
View
| Operating Temperature Range | -30 to 85℃ |
| Type of Product | Slide Switch |
| Model No | CS-12AAP1 |
| Mechanical Durability | 50000 Times Or More |
Operating Temperature Range |
-30 to 85℃ |
Type of Product |
Slide Switch |
Model No |
CS-12AAP1 |
Mechanical Durability |
50000 Times Or More |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Withstand Voltage |
AC 1.0 kV (between terminal and terminal) 1 minute or more AC 1.5 kV (between terminal and ground) 1 minute or more |
No. of Pole |
1 |
Monotaro ID |
38444831 |
Functional Operation |
On-On |
Current Capacity |
3A AC125V |

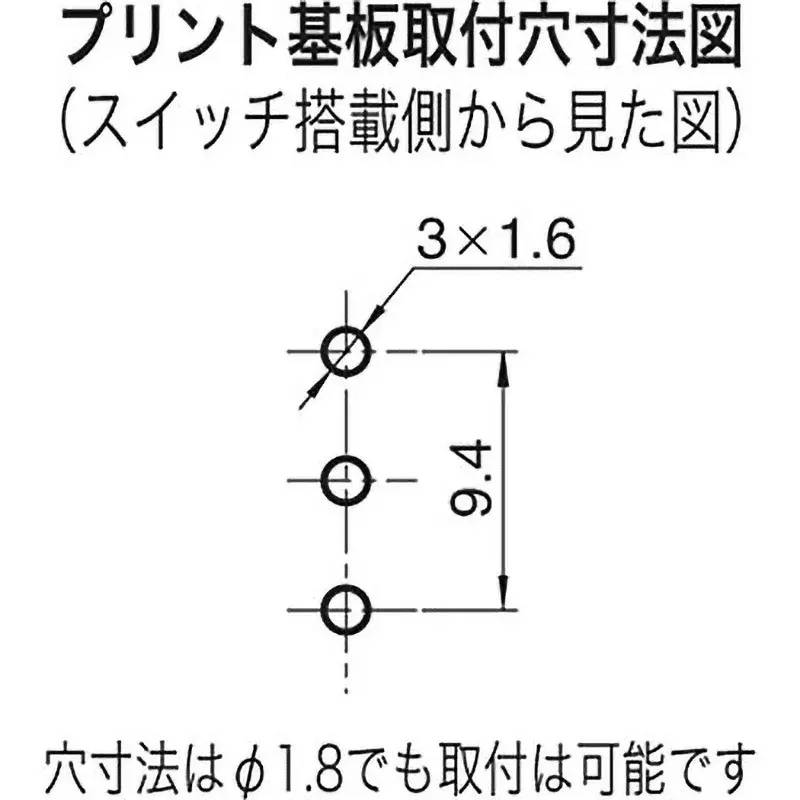

Terminal Shape |
PC terminal |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Shape |
Knob / Basic knob |

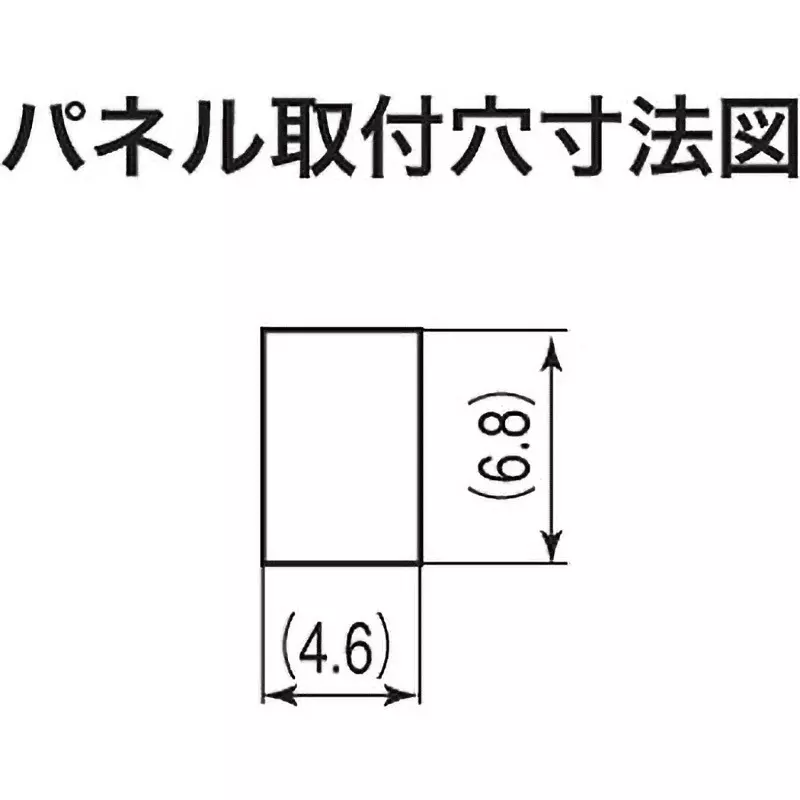

Mounting hole dimensions (mm) |
4.6x6.8 |
Circuits |
Single Pole Double Throw |
Stroke (mm) |
2.2000000000000002 |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Contact Resistance (ohm) |
10 or less (DC2 to 4V at 100 mA) |
Electrical Durability for Opening and Closing |
20000 times or more |
Heat Resistance |
When using a soldering iron / Temperature 350°C or less within 3 seconds / When using a solder bath / Temperature 270°C or less within 5 seconds |
