| Operating Temperature Range | -15 to 60℃ |

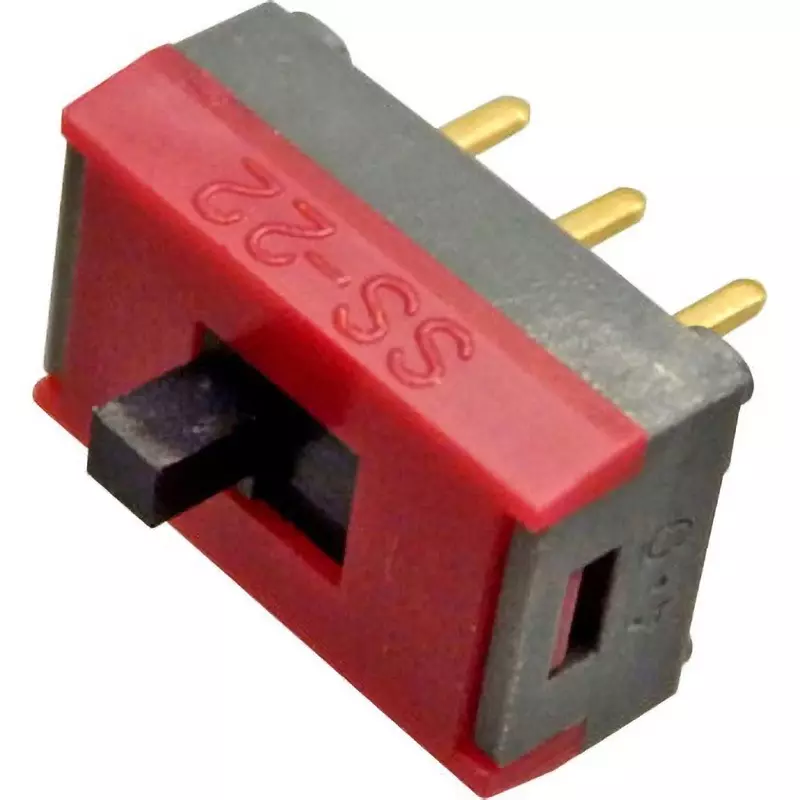

| Type of Product | Miniature Slide Switch |
| Model No | SS-22SDP4 |
| Mechanical Durability | 10,000 times or more |
Operating Temperature Range |
-15 to 60℃ |
Type of Product |
Miniature Slide Switch |
Model No |
SS-22SDP4 |
Mechanical Durability |
10,000 times or more |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Withstand Voltage |
AC 500 V 1 minute or more |
No. of Pole |
2 |
Switch Type |
Shorting |
Monotaro ID |
75804504 |
Functional Operation |
2-pole double throw (ON-ON) |
Current Capacity |
0.4VA MAX. 28V MAX.; Applicable voltage range 20 mV to 28V; Applicable current range 0.1 mA to 0.1A |
Terminal Shape |
Contact pitch 2.54m Length 3mm |
Import Country |
Direct Import from Japan |
Operation Mechanism |
Vertical knob |
Circuits |
2-pole double throw |
Stroke (mm) |
2 |
Material/Finish |
Copper alloy / gold plating |
Contact Resistance (ohm) |
40 or less (at 20 mV 10 mA) |
Insulation Resistance (MOhm) |
100 or more (DC 500 V) |
Electrical Durability for Opening and Closing |
10,000 times or more |
Heat Resistance |
When using a soldering iron / Temperature 350°C or less within 3 seconds / When using a solder bath / Temperature 270°C or less within 5 seconds However, for through-hole boards, Temperature 250°C or less within 5 seconds |
Plating Type |
Gold plate |
Terminal Material |
Copper alloy |
Contact Spacing |
2.54 mm |
Terminal Length |
3 mm |
