| Operating Temperature Range | -30 to 85℃ |
| Type of Product | Slide Switch |
| Model No | CS-22AAP1 |
| Mechanical Durability | 50,000 times or more |
Operating Temperature Range |
-30 to 85℃ |
Type of Product |
Slide Switch |
Model No |
CS-22AAP1 |
Mechanical Durability |
50,000 times or more |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Withstand Voltage |
AC 1.0 kV (between terminals) 1 minute or more AC 1.5 kV (between terminals and ground) 1 minute or more |
No. of Pole |
2 |
Monotaro ID |
75798816 |
Functional Operation |
On-On |
Current Capacity |
3A AC125V |

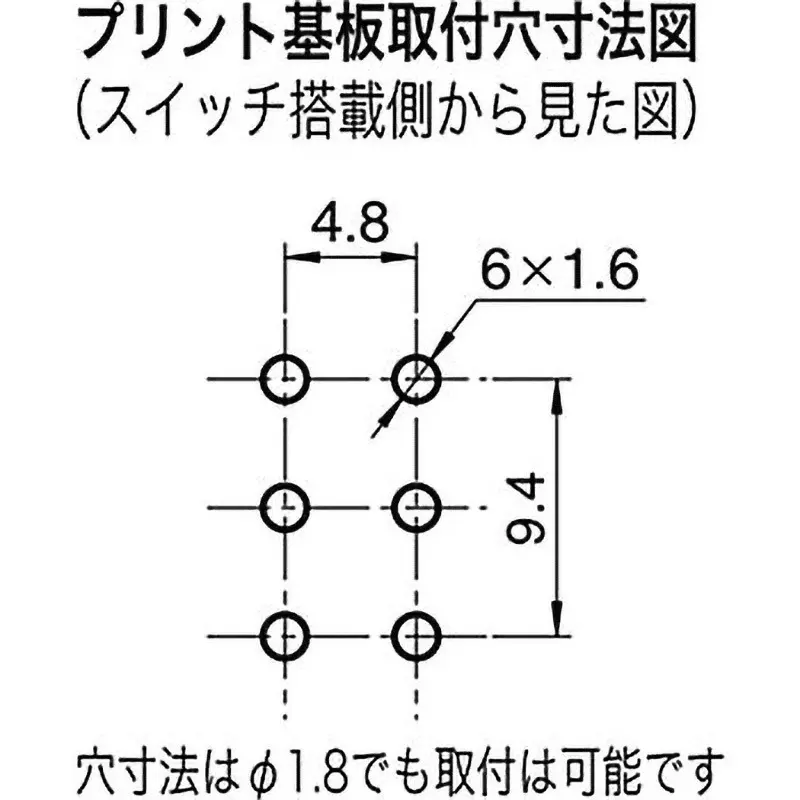

Terminal Shape |
PC terminal |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Shape |
Knob / Basic knob |

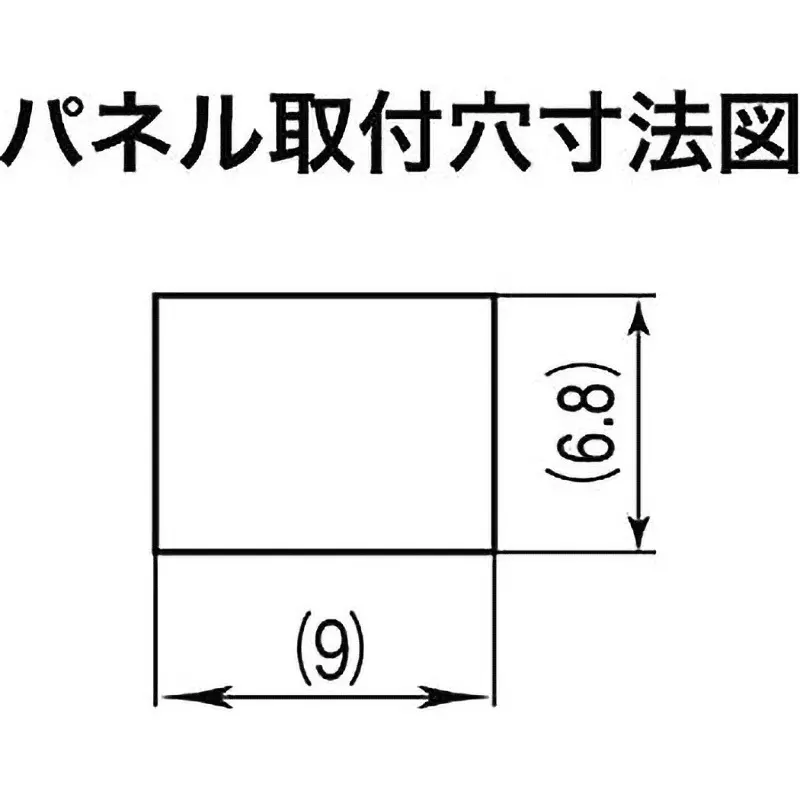

Mounting hole dimensions (mm) |
9x6.8 |
Circuits |
2-pole double throw |
Stroke (mm) |
2.2000000000000002 |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Contact Resistance (ohm) |
10 or less (DC2 to 4V at 100 mA) |
Electrical Durability for Opening and Closing |
20,000 times or more |
Heat Resistance |
When using a soldering iron/within 3 seconds at a temperature of 350°C or less When using a solder bath/within 5 seconds at a temperature of 270°C or less |
