| Operating Temperature Range | -25 to 85℃ |
| Type of Product | Tactile Switch |
| Model No | JF-15CKCBNP2 |
| Mechanical Durability | 500000 times or more |
Operating Temperature Range |
-25 to 85℃ |
Type of Product |
Tactile Switch |
Model No |
JF-15CKCBNP2 |
Mechanical Durability |
500000 times or more |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Withstand Voltage |
250 V AC for 1 minute or more |
Monotaro ID |
38445023 |
Functional Operation |
OFF-<ON> (<> is momentary) |
Current Capacity |
50mA DC24V |
Contact Specifications |
Silver plating |

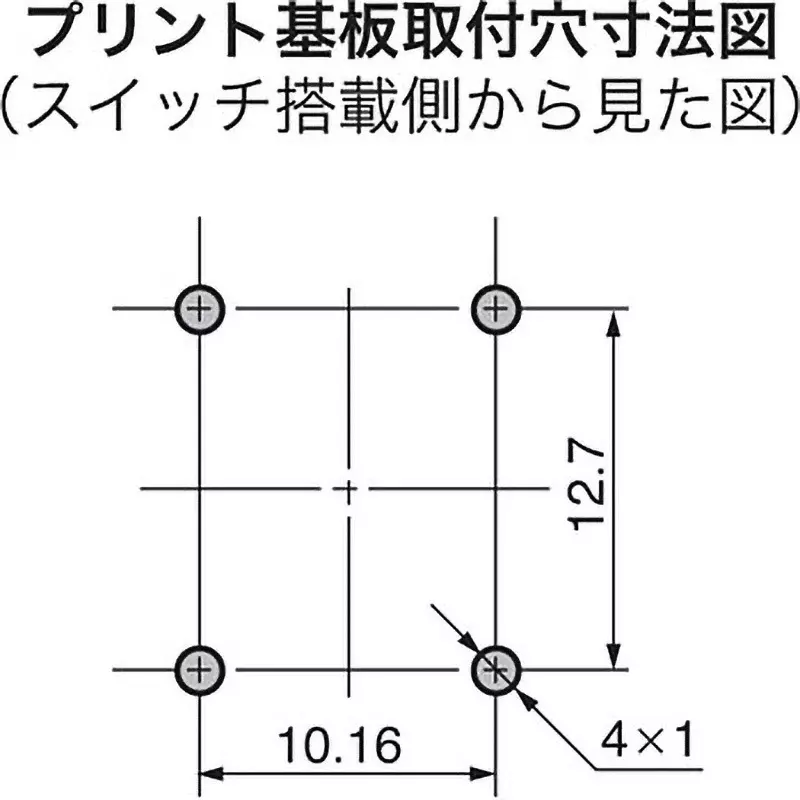

Terminal Shape |
PC terminal |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Button Shape |
Round Type |
Color of Operating Part |
Blue |
Operations |
0.4 mm(+0.1/-0.2) |
Circuits |
Single pole single throw |
Operating Force (N) |
3±0.8 |
Contact Resistance (ohm) |
50 or less (at 20 mV 10 mA) |
Insulation Resistance (MOhm) |
500 or more (DC 250 V) |
Electrical Durability for Opening and Closing |
500000 times or more |
Heat Resistance |
When using a soldering iron (by mounting the board) / Temperature 350°C or less within 3 seconds / When using a solder bath / Temperature 270°C or less within 5 seconds |
Housing |
Round Type |
