Ships within 25 days
View
View
View
View

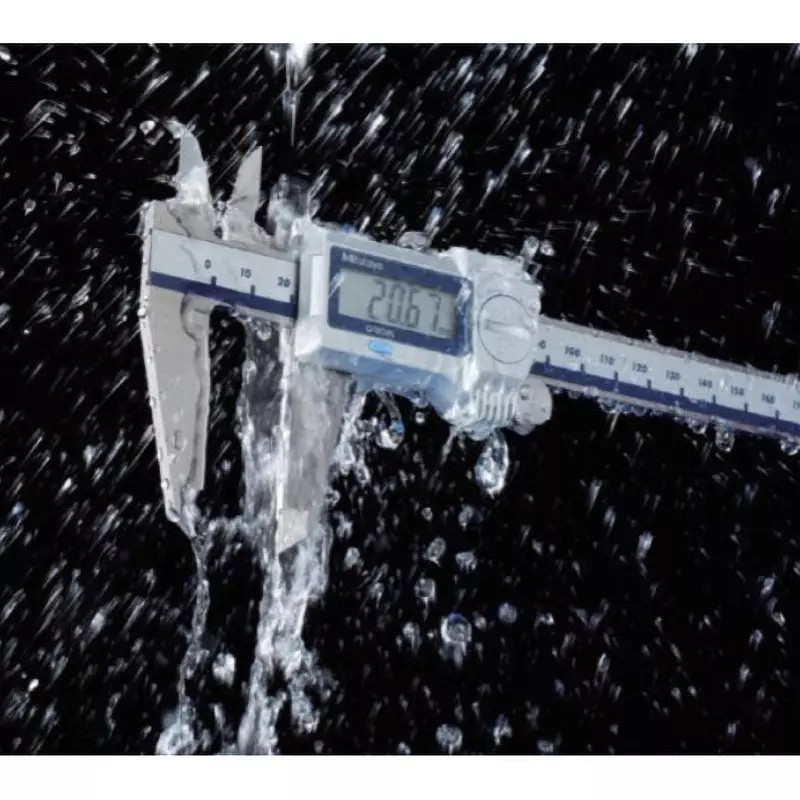

| Type of Product | Coolant Digimatic Caliper |
| Model No | CD-P30M |
| Type | Standard type |
| Series | 500 |
Type of Product |
Coolant Digimatic Caliper |
Model No |
CD-P30M |
Type |
Standard type |
Series |
500 |
Monotaro ID |
44061895 |
Country of Origin |
Japan |
Quantization Error |
Does not include ± 1 Count |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Protection Class |
IP67(IEC60529) |
Maximum Response Speed |
Unlimited |

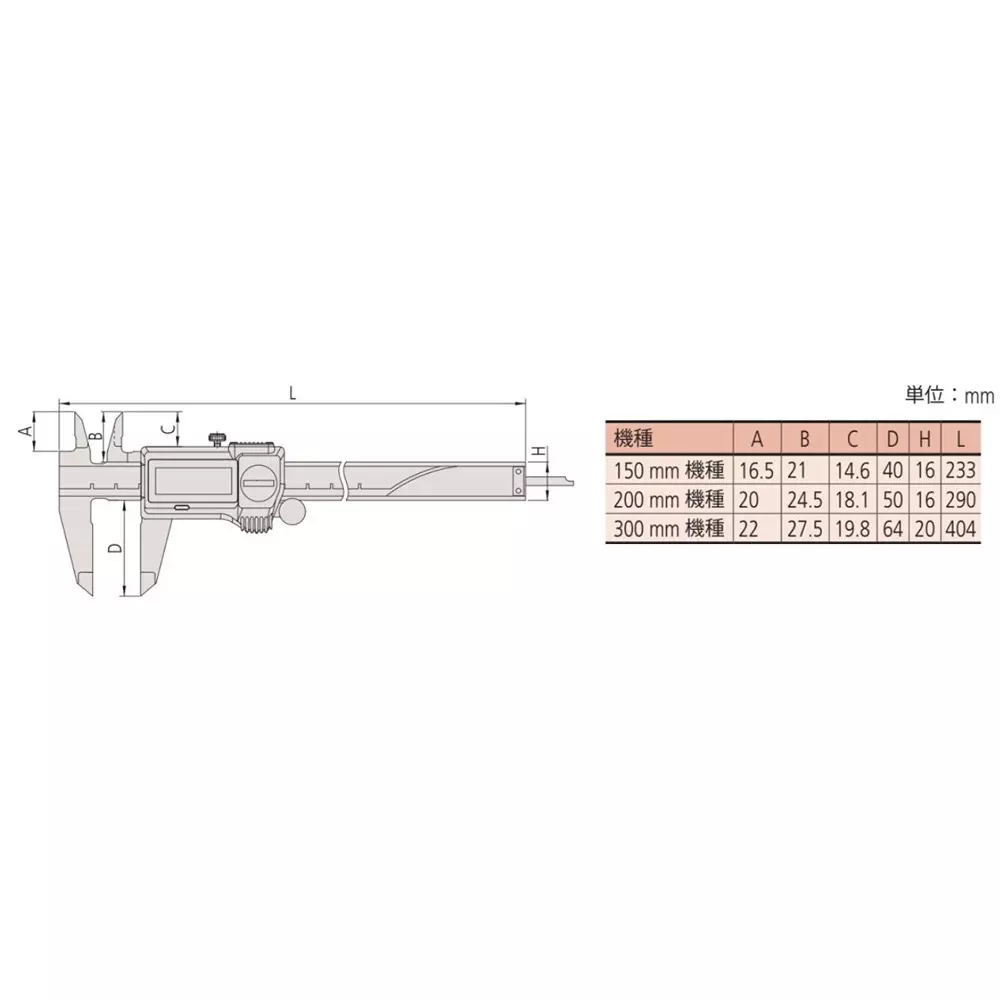

Dimensions C (mm) |
19.8 |
Dimension L (mm) |
404 |
Dimensions D (mm) |
64 |
Mass (g) |
350 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Minimum Reading (mm) |
0.01 mm |
Measuring_Range |
0 - 300 mm |
Repeatability (mm) |
0.01 mm |
Dimensions B (mm) |
27.5 |
Dimensions H (mm) |
20 |
Dimensions A (mm) |
22 |
Operating Temperature (c) |
0 - 40°C |
Operating Temperature Range |
0 - 40°C |
Storage Temperature |
-10 - 60℃ |
