| Type of Product | Coolant Digimatic Caliper |
| Model No | CD-P15MW |
| Type | With outer measuring surface cemented carbide tip |
| Series | 500 |
Type of Product |
Coolant Digimatic Caliper |
Model No |
CD-P15MW |
Type |
With outer measuring surface cemented carbide tip |
Series |
500 |
Monotaro ID |
20649728 |
Depth Bar |
Yes |
Country of Origin |
Japan |
Quantization Error |
Does not include ± 1 Count |
Function |
Origin set function, measurement data output function, auto power ON / OFF function, error alarm |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Protection Class |
IP67(IEC60529) |
Maximum Response Speed |
Unlimited |

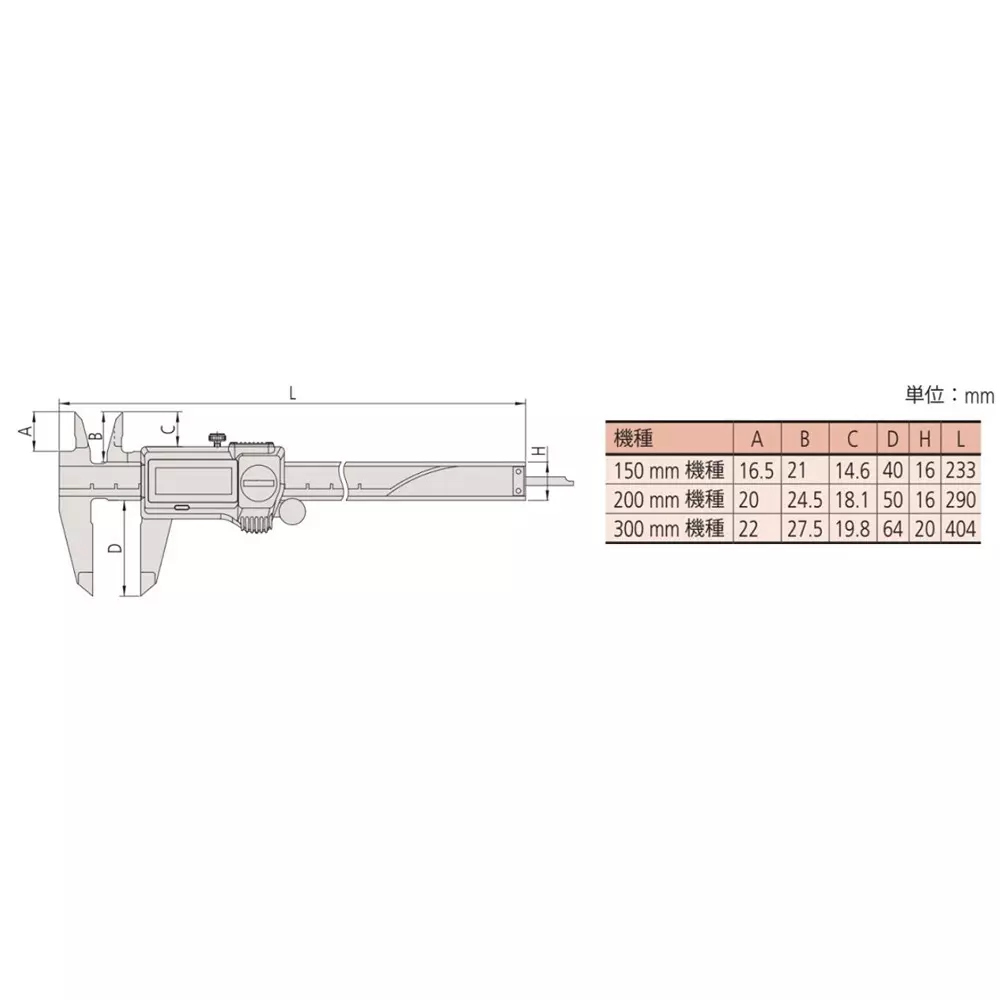

Dimensions C (mm) |
14.6 |
Dimension L (mm) |
233 |
Dimensions D (mm) |
40 |
Trusco Part No. |
780-5683 |
Mass (g) |
168 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Minimum Reading (mm) |
0.01 mm |
Measuring_Range |
0 - 150 mm |
Repeatability (mm) |
0.01 mm |
Dimensions B (mm) |
21 |
Dimensions H (mm) |
16 |
Dimensions A (mm) |
16.5 |
