| Type of Product | Digimatic Caliper |
| Model No | CD-30AX |
| Series | 500 |
| Monotaro ID | 44062078 |
Type of Product |
Digimatic Caliper |
Model No |
CD-30AX |
Series |
500 |
Monotaro ID |
44062078 |
Country of Origin |
Japan |
Quantization Error |
Does not include ± 1 Count |
Function |
ABS (absolute) measurement function, INC (incremental) measurement function, low battery voltage alarm, measurement data output function, hold function (display value can be held by using optional hold unit. Cannot be used in conjunction with output function.) |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Maximum Response Speed |
Unlimited |

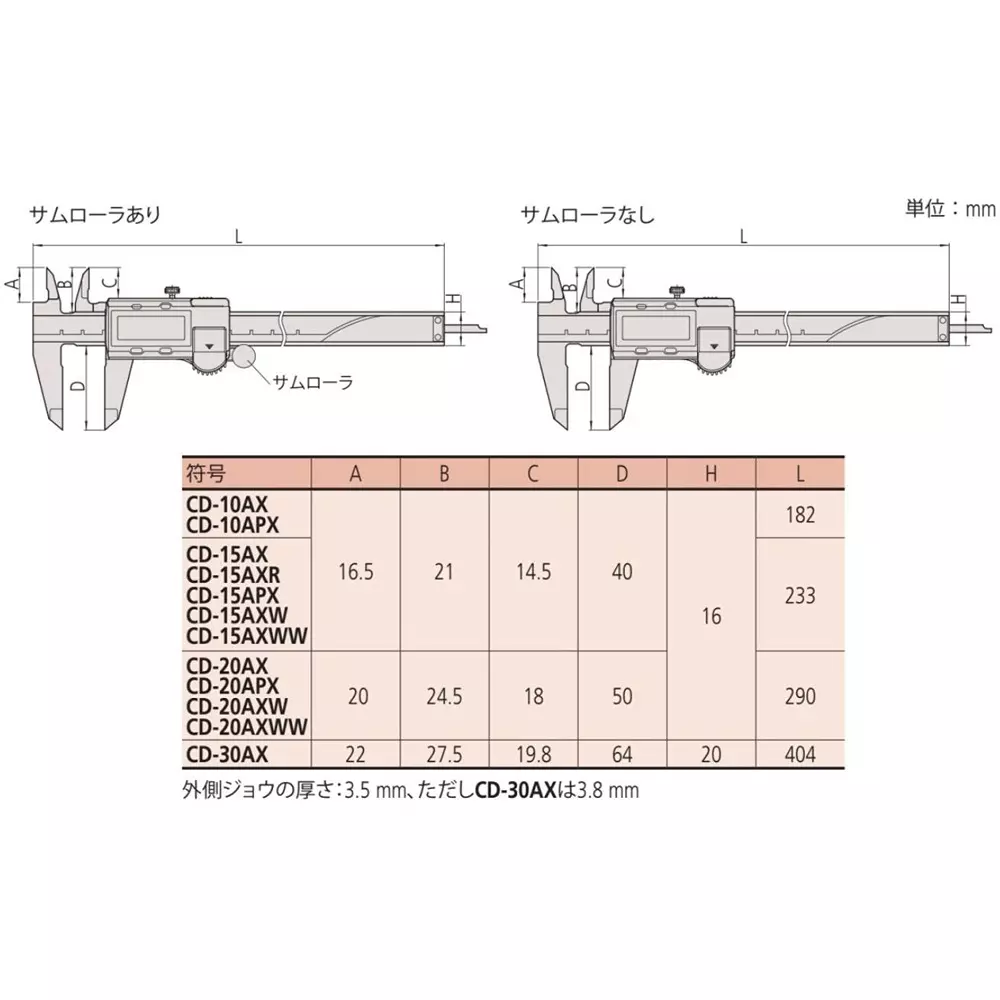

Dimensions C (mm) |
19.8 |
Dimension L (mm) |
404 |
Dimensions D (mm) |
64 |
Mass (g) |
350 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Minimum Reading (mm) |
0.01 mm |
Measuring_Range |
0 - 300 mm |
Repeatability (mm) |
0.01 mm |
Dimensions B (mm) |
27.5 |
Dimensions H (mm) |
20 |
Dimensions A (mm) |
22 |
Operating Temperature (c) |
0 - 40°C |
Operating Temperature Range |
0 - 40°C |
Storage Temperature |
-10 - 60℃ |
Thickness (mm) |
3.8 (outer jaw) |
