Ships within 8 days
View
View
View
View
| Conductor Material | Copper |
| Nominal Area | 0.25 mm² |

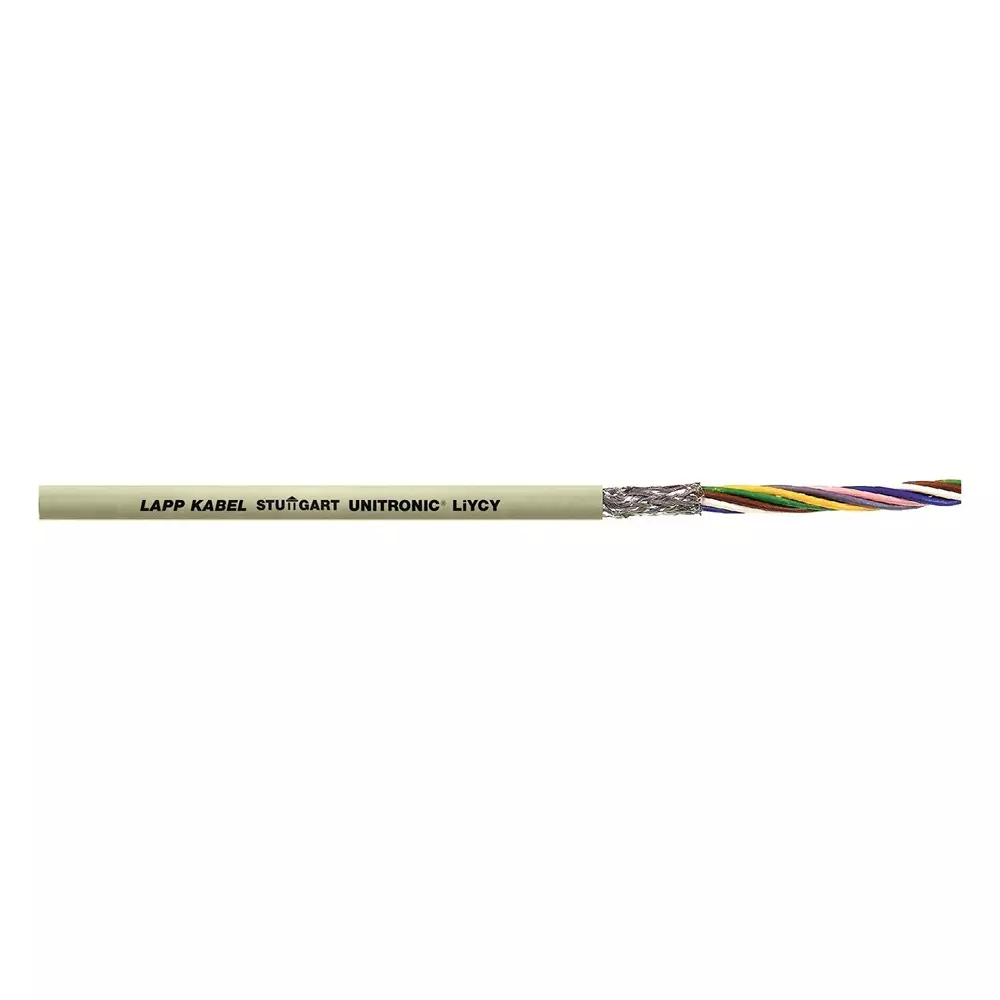

| Type of Product | Low Frequency Data Transmission Cable |
| Model No | 34432 |
Conductor Material |
Copper |
Nominal Area |
0.25 mm² |
Type of Product |
Low Frequency Data Transmission Cable |
Model No |
34432 |
No of Core |
32 |
Cable Length |
500 m |
Insulation Material |
PVC |
Conductor Type |
Fine-Wire |
Color |
Grey |
Outer Diameter |
11.4 mm |
Country of Origin |
Germany |
Shielded/Unshielded |
Shielded |
Series |
UNITRONIC LiYCY |
Name of Manufacturer/Packer/Importer |
HSV Technologies LLP |
Test Voltage |
1.2 kV |

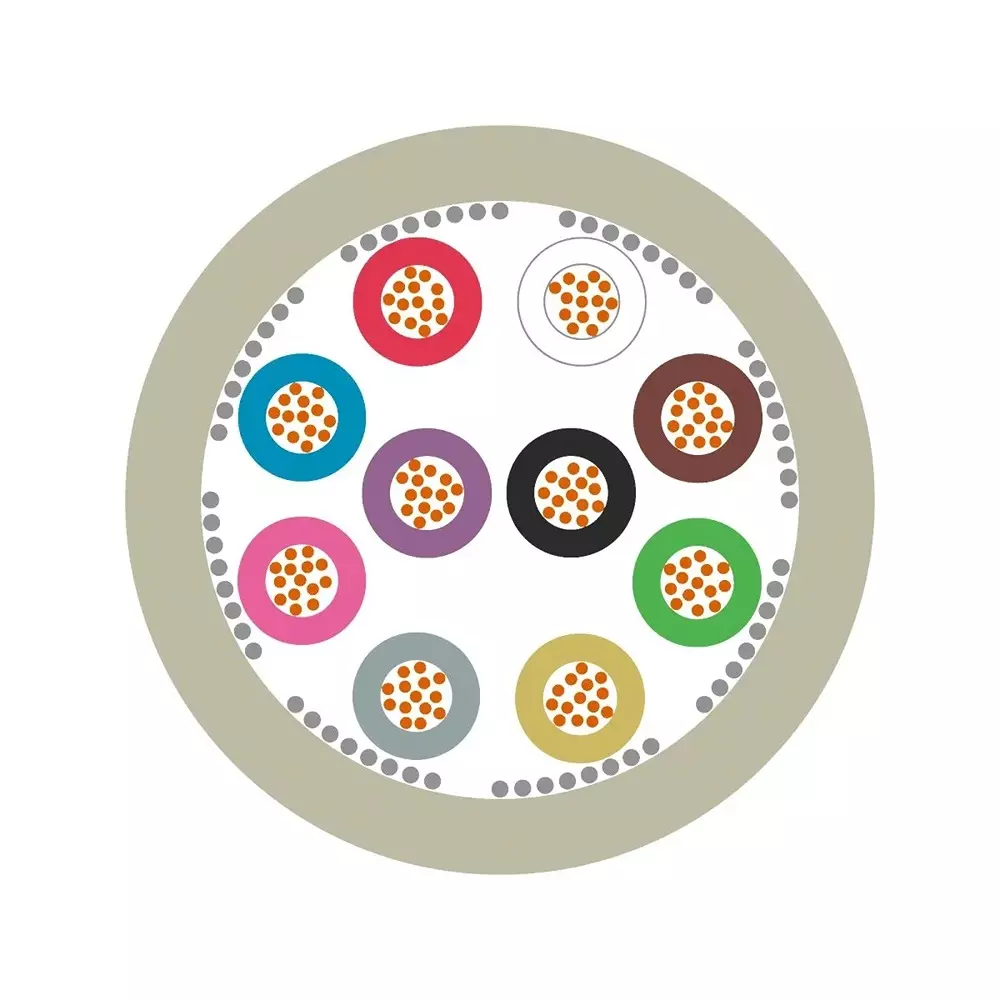

Cable Dimensions |
32x0.25 |
Stranding |
Layered Stranding |
Installation |
Fixed installation, Flexible |
Temperature |
-40 °C to 80 °C |
Shape |
Round |
Shield Type |
Tin-plated copper braiding |
Certification |
CE, EAC |
Application |
Control, regulation and measurement circuits, fixed installation and occasional movement, Can be used in dry and damp spaces. Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range. |
Weight |
203 Kg/Km |
Copper Index |
138.000 Kg/Km |
