| Conductor Material | Copper |
| Nominal Area | 0.25 mm² |
| Type of Product | Low Frequency Data Cable |
| Model No | 35807 |
Conductor Material |
Copper |
Nominal Area |
0.25 mm² |
Type of Product |
Low Frequency Data Cable |
Model No |
35807 |
No of Core |
32 |
Cable Length |
500 m |
Insulation Material |
PVC |
Conductor Type |
Fine-Wire |
Color |
Grey |
Outer Diameter |
12.5 mm |
Country of Origin |
Germany |
Shielded/Unshielded |
Shielded |
Series |
UNITRONIC LiYCY (TP) |
Name of Manufacturer/Packer/Importer |
HSV Technologies LLP |
Test Voltage |
1.2 kV |
Cable Dimensions |

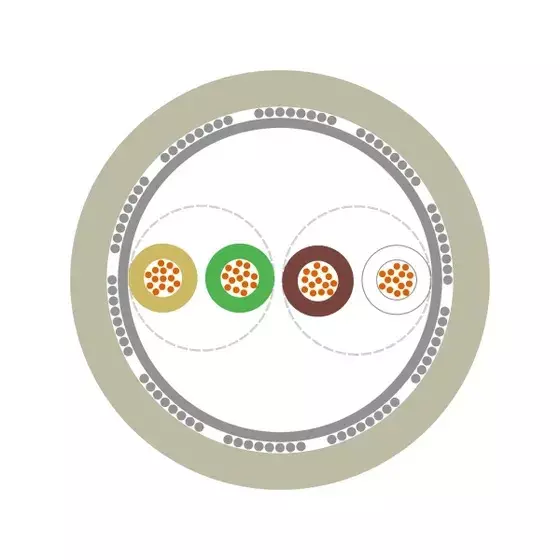

16x2x0.25 |
Stranding |
Twisted Pair |
Installation |
Flexible Fixed Installation |
Temperature |
-40 °C to 80 °C |
Shape |
Round |
Shield Type |
Tin-plated copper braiding |
Certification |
CE, EAC |
Application |
For use in control, regulation and measurement circuits. For fixed installation and occasional movement. Can be used in dry and damp spaces. Suitable for light mechanical stress. The PVC outer sheath is somewhat oil-resistant. |
Weight |
238 Kg/Km |
Copper Index |
146.500 Kg/Km |
No. of Pairs |
16 |
