| Conductor Material | Tin Plated Copper |
| Nominal Area | 24 AWG |

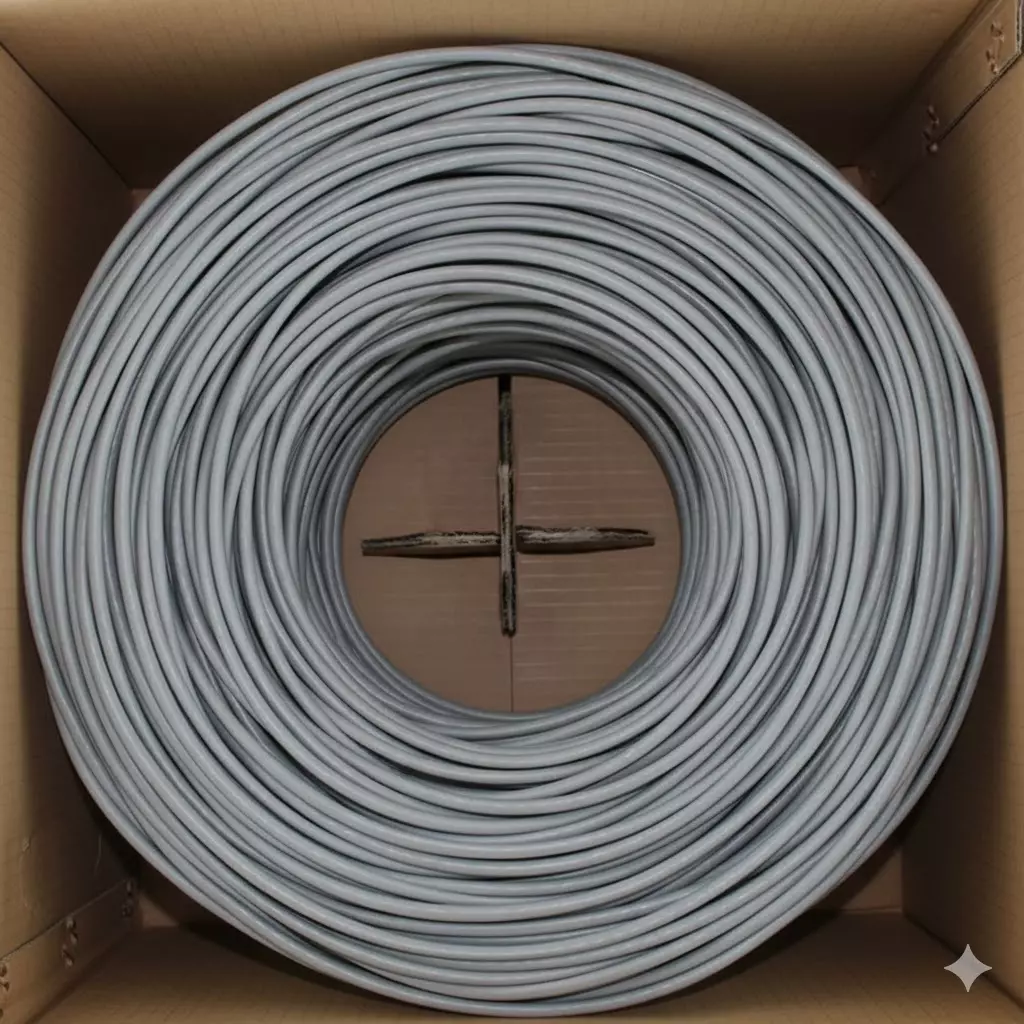

| Type of Product | Low Frequency Data Cable |
| Model No | 66235 |
Conductor Material |
Tin Plated Copper |
Nominal Area |
24 AWG |
Type of Product |
Low Frequency Data Cable |
Model No |
66235 |
No of Core |
10 |
Voltage Rating |
300 V AC |
Cable Length |
500 m |
Insulation Material |
PVC |
Color |
Dark Grey |
Outer Diameter |
7.5 mm |
Country of Origin |
Germany |
Shielded/Unshielded |
Shielded |
Series |
UNITRONIC LiYCY(TP) A |
Name of Manufacturer/Packer/Importer |
HSV Technologies LLP |
Test Voltage |
1.5 kV |
Cable Dimensions |
5x2xAWG24 |
Stranding |
Twisted Pair |
Installation |
Flexible Fixed Installation |
Temperature |
-40 °C to 80 °C |
Shape |
Round |
Shield Type |
Tin-plated copper braiding |
Certification |
CE, EAC, UL, cUR |
Application |
Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range. For use in control, regulation and measurement circuits. For fixed installation and occasional movement. Can be used in dry and damp spaces. |
Weight |
91 Kg/Km |
No. of Pairs |
5 |
