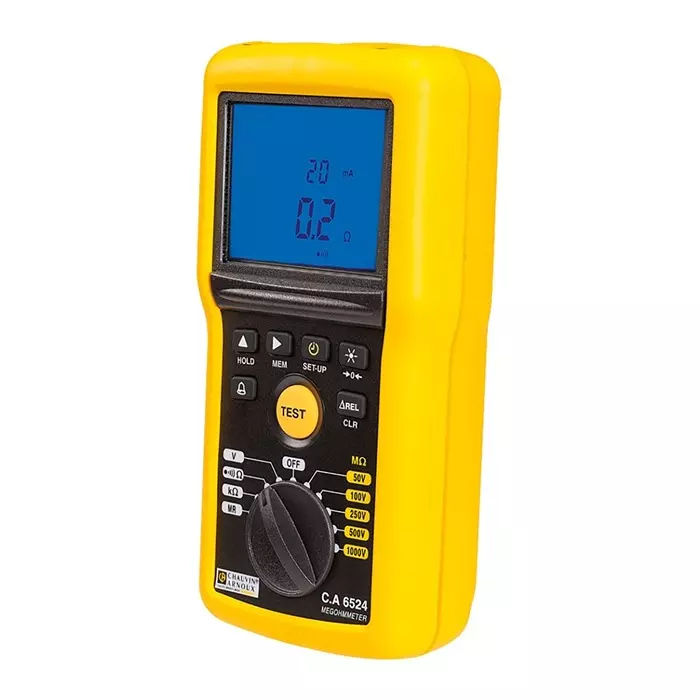

CHAUVIN ARNOUX Insulation Continuity Tester 50 V Min 1000 V Max 200G Ω Max CAT IV, P01140824

Name: CHAUVIN ARNOUX Insulation Continuity Tester 50 V Min 1000 V Max 200G Ω Max CAT IV, P01140824
Brand: CHAUVIN ARNOUX
SKU: IND.IND.535023746
Price: 86139 INR
Availability: InStock

Visit the CHAUVIN ARNOUX Store

EMI starts at ₹7653/month. No Cost EMI available.

Available offers

Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹500 off on Order above ₹15000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Features

Type of Product	Insulation Continuity Tester
Weight	850 g
Accuracy	-
Model No	CA 6524

More CHAUVIN ARNOUX Insulation Resistance Tester products More Insulation Resistance Tester products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Type of Product	Insulation Continuity Tester
Weight	850 g
Accuracy	-
Model No	CA 6524
Power Source	Battery
Dimension	108 x 60 x 211 mm
Display Type	Backlit LCD
Battery Life	1500 5s insulation Measurements at 1000V, 3000 5s continuity Measurements
Insulation Resistance	200GΩ (Max.)
Battery Type	LR06 AA
Current	200 mA and 20 mA
Test Current	200 mA and 20mA
Voltage Range	50-1000 V
Country of Origin	France
Height	211 mm
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+55°C
Width	60 mm
Length	108 mm
Name of Manufacturer/Packer/Importer	RS Components & Controls (I) Ltd
Safety Category	CAT IV 600V
Safety Category Voltage	600V
Maximum Test Voltage	1000 V
Tester Types	Insulation & Continuity Tester
Minimum Test Voltage	50 V
Manufacturer Part Number	P01140824
Safety Category Levels	CAT IV
