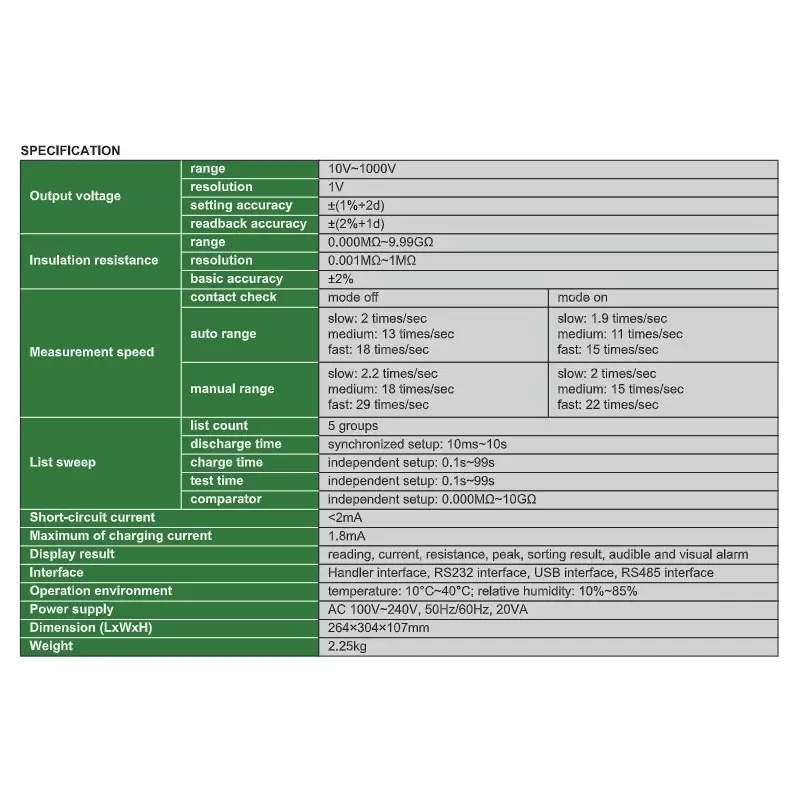

| Type of Product | Insulation Resistance Tester |
| Weight | 2.25 Kg |
| Accuracy | Setting: ±(1%+2d), Readback: ±(2%+1d) |
| Model No | 9456-DR01 |
Type of Product |
Insulation Resistance Tester |
Weight |
2.25 Kg |
Accuracy |
Setting: ±(1%+2d), Readback: ±(2%+1d) |
Model No |
9456-DR01 |
Interface |
Handler Interface, RS232 Interface, USB Interface, RS485 Interface |
Package Contains |
1 x Main Unit, 2 x Test Lead, 1 x Handler Connector, 1 x RS232 Communication Cable |
Dimension |
264x304x107 mm |
Power Supply |
100-240 V AC, 50/60 Hz, 20 VA |
Insulation Resistance |
0.000 MΩ-9.99 GΩ |
Resolution |
Output Voltage: 1 V, Insulation Resistance: 0.001 MΩ - 1 MΩ |
Current |
Short Circuit: < 2 mA |
Voltage Range |
10-1000 V |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Insize |
Operating Environment |
Temperature: 10°C to 40°C, Relative Humidity: 10%-85% |
Charging Time |
1.8 mA |
Parameters Measured |
Reading, Current, Resistance, Peak, Sorting Result, Audible and Visual Alarm |
