Ships within 7 days
Model No
Insulation Resistance
View
View
View
View
| Type of Product | Digital Insulation Resistance Tester |
| Operating Temperature | 0 to 40 °C |
| Short Circuit Current | upto 5mA |
| Display | LCD Backlight |
Type of Product |
Digital Insulation Resistance Tester |
Operating Temperature |
0 to 40 °C |
Short Circuit Current |
upto 5mA |
Display |
LCD Backlight |
Weight |
Approx : 6.56kg |
Accuracy |
± 20 % rdg |
Function |

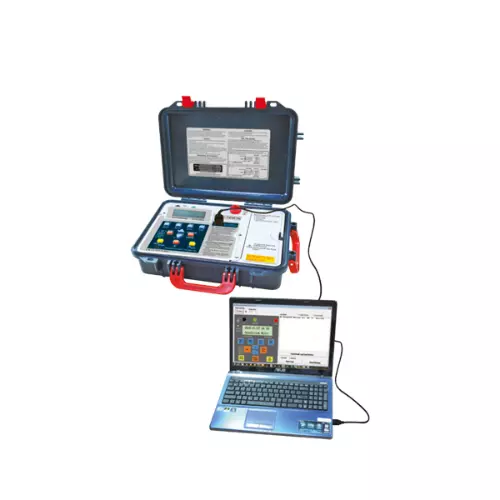

PI & DAR indication. Optical USB to RS-232 data transmission |
Model No |
KM 7016IN |
Power Source |
Rechargeable battery |
Dimension |
430x324x127 mm |
Color |
White |
Insulation Resistance |
upto 30TΩ |
Battery Type |
Rechargeable Battery |
Voltage (Dc) |
600 V |
Test Voltage |
15 KV |
Voltage (AC) |
600 V |
Polarization Index |
Yes |
Preset Buttons |
1kV, 5kV, 10kV, 15kV |
Current |
0.5-0.55 mA |
Accessories |

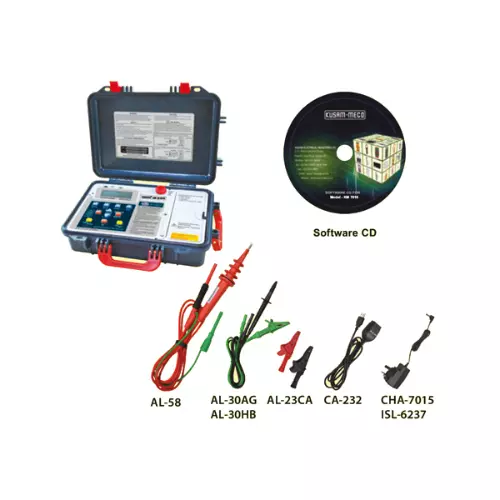

Instruction manual, Test leads (AL-58, AL-30AG,AL-30HB), Data transmission cable CA-232,Alligator clip (AL-23CA), Charger (CHA-7015 |
Voltage Range |
500 V-15 kV |
Battery Voltage |
24 V |
