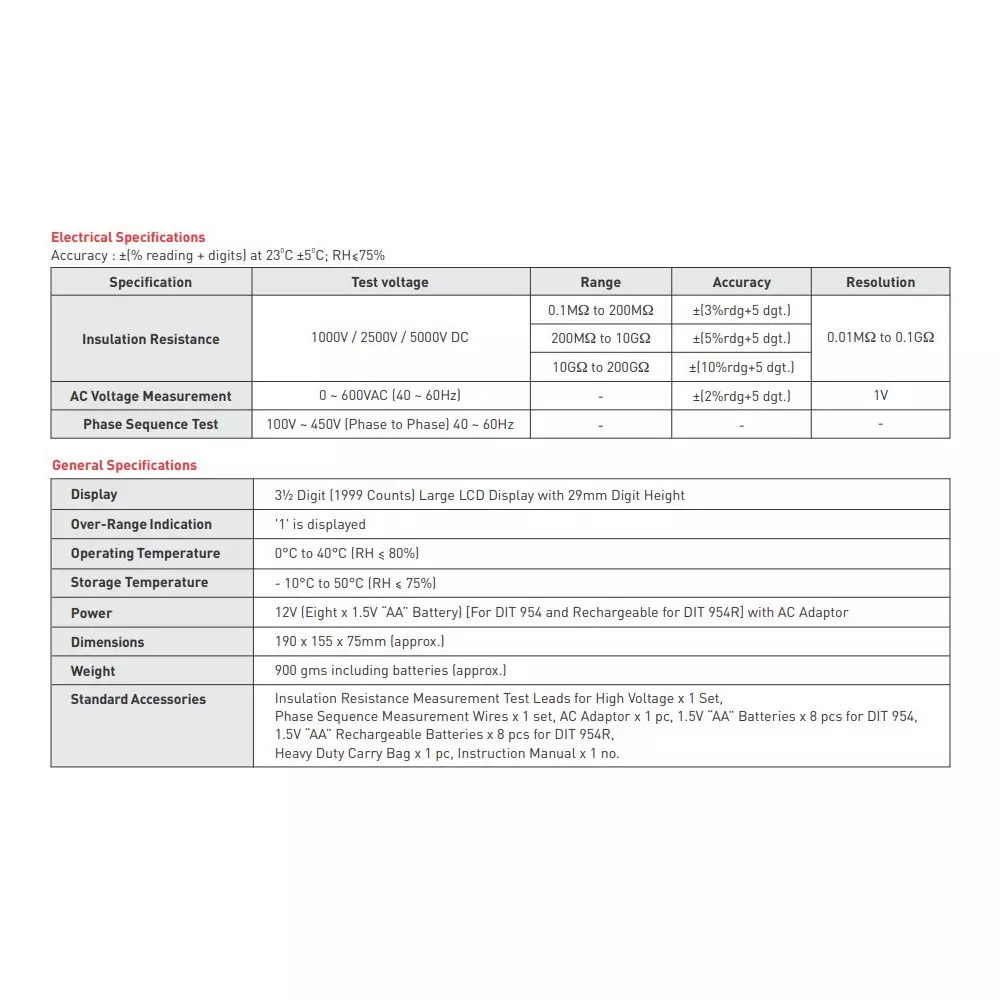

| Type of Product | Digital Insulation Tester |
| Operating Temperature | 0°C to 40°C (RH < 80%) |
| Storage Temperature | -10°C to 50°C (RH < 75%) |
| Weight | 900 g |
Type of Product |
Digital Insulation Tester |
Operating Temperature |
0°C to 40°C (RH < 80%) |
Storage Temperature |
-10°C to 50°C (RH < 75%) |
Weight |
900 g |
Accuracy |
± 3 to 10% |
Model No |
DIT 954 |
Package Contains |

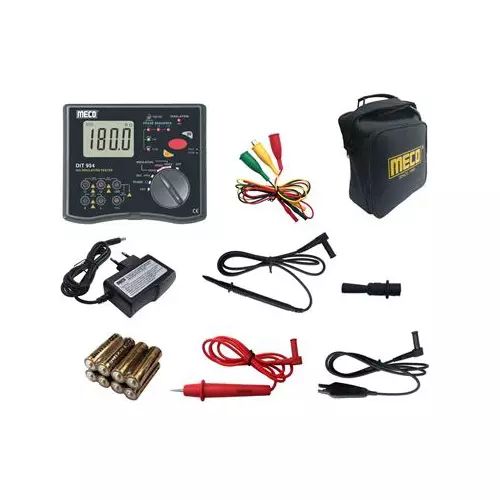

Meter x 1 Pc Insulation Resistance Measurement Test Leads for High Voltage x 1 Pair 1.5V 'AA' Battery x 8 Pcs Instruction Manual x 1 Pc Phase Sequence Measurement Wires x 1 Set AC Adaptor x 1 Pc Heavy Duty Carry Bag x 1 Pc Test and Calibration Certificate |
Dimension |
190 x 155 x 75 mm |
Test Voltage Range |
6 Ranges: 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V |
Display Type |
3½ Digit (1999 Counts) Large LCD Display with 29 mm Digit Height |
Power |
12 V (Eight x 1.5 V AA Battery) [For DIT 954 and Rechargeable for DIT 954R] with AC Adaptor |
Insulation Resistance |
0.1 to 200 MΩ, 200 MΩ to 10 GΩ, 10 GΩ to 200 GΩ |
Resolution |
0.01 MΩ to 0.1 GΩ |
Test Voltage |
1000 V / 2500 V / 5000 V DC |
Voltage (AC) |
0 - 600 VAC |
Current |
1.8 mA |
Voltage Range |
0-600 V |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
MECO INSTRUMENTS |
Phase Sequence Test |
100 V - 450 V (Phase to Phase) 40 - 60 Hz |
