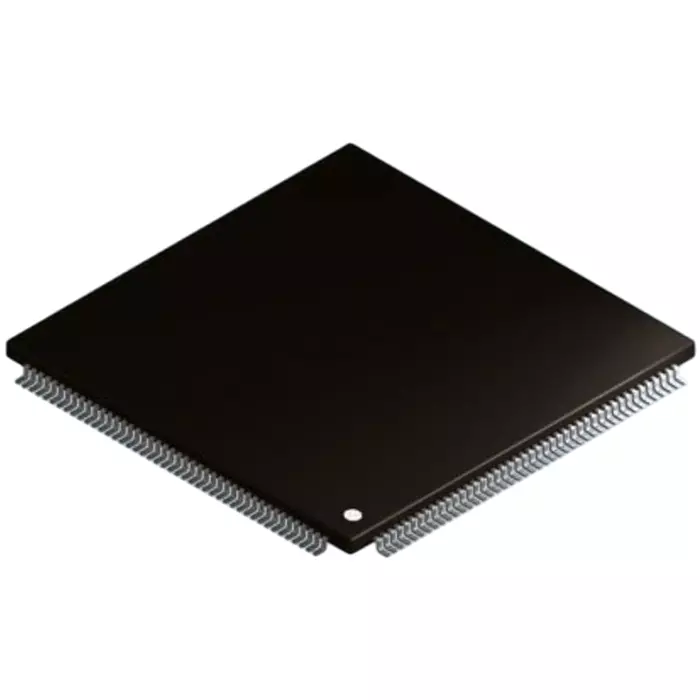

| Type of Product | Arm Cortex M3 Microcontroller |
| Model No | STM32F207IET6 |
| Dimension | 24.1 x 24.1 x 1.45 mm |
| Length | 24.1 mm |
Type of Product |
Arm Cortex M3 Microcontroller |
Model No |
STM32F207IET6 |
Dimension |
24.1 x 24.1 x 1.45 mm |
Length |
24.1 mm |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Package Type |
LQFP |
Pin Count |
176 |
Mounting Type |
Surface Mount |
Maximum Operating Temperature |
+85 °C |
Minimum Operating Temperature |
-40 °C |
Width |
24.1 mm |
Height |
1.45 mm |
Instruction Set Architecture |
MCU |
Family Name |
STM32F2 |
Number of USART Channels |
4 |
Data Bus Width |
32 bit |
Typical Operating Supply Voltage |
3.6 V |
Number of I2C Channels |
3 |
Maximum Frequency |
120 MHz |
Number of ADC Units |
3 |
Device Core |
ARM Cortex M3 |
Program Memory |
Flash |
Number of SPI Channels |
3 |
Program Memory Capacity |
512 kB |
RAM Capacity |
128 kB |
ADCs |
24 x 12 bit |
USB Channel |
2 |
Number of CAN Channels |
2 |
Number of LIN Channels |
0 |
Number of UART Channels |
2 |
Number of PCI Channels |
0 |
Pulse Width Modulation |
2 (4 x 16 bit) |
Number of PWM Units |
2 x 16 bit |
Maximum Number of Ethernet Channels |
1 |
Number of Ethernet Channels |
1 |
