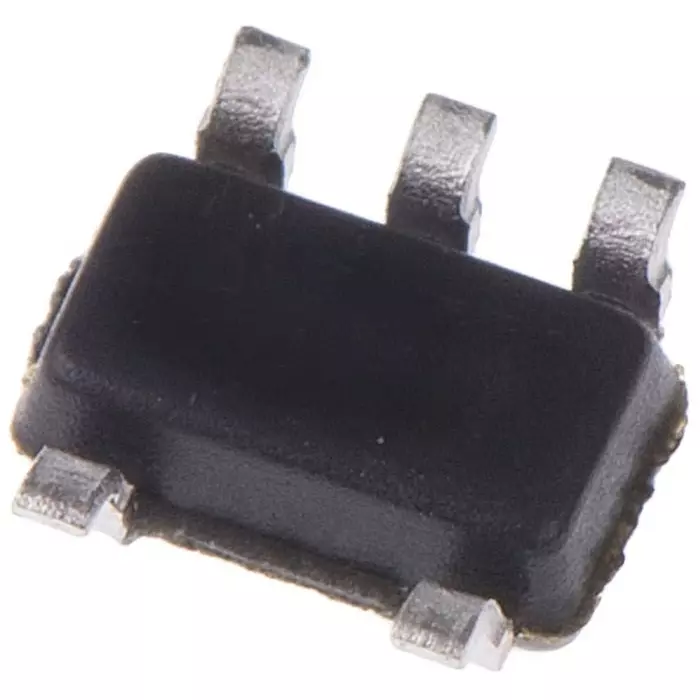

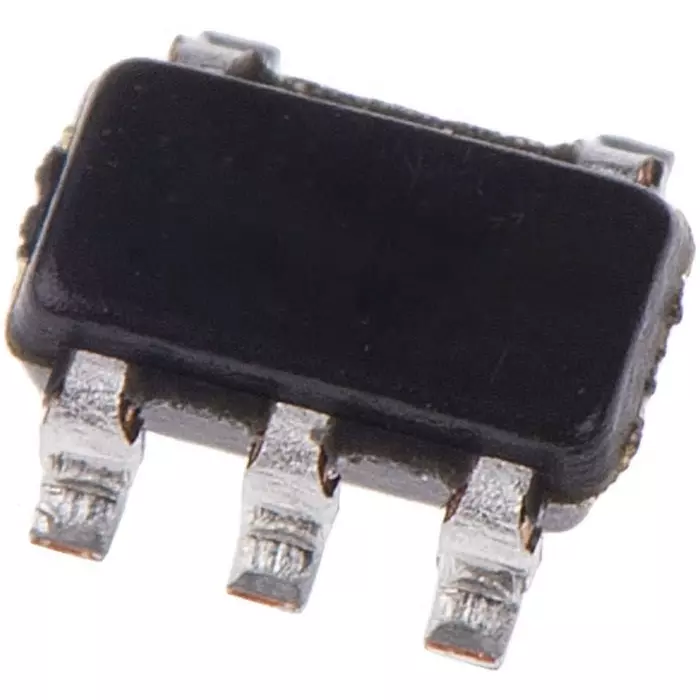

| Type of Product | Mosfet Power Switch IC |
| Model No | STMPS2151STR |
| Dimension | 3 x 1.75 x 1.3 mm |
| Country of Origin | USA |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Mosfet Power Switch IC |
Model No |
STMPS2151STR |
Dimension |
3 x 1.75 x 1.3 mm |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Package Type |
SOT-23 |
Pin Count |
5 |
Mounting Type |
Surface Mount |
Maximum Operating Supply Voltage |
5.5 V |
Maximum Operating Temperature |
+125 °C |
Minimum Operating Temperature |
-40 °C |
No. Of Output |
1 |
Switch On Resistance |
160 mΩ |
Maximum Operating Current |
0.5 Amp |
Switch Type |
MOSFET |
Power Switch Topology |
High Side |
