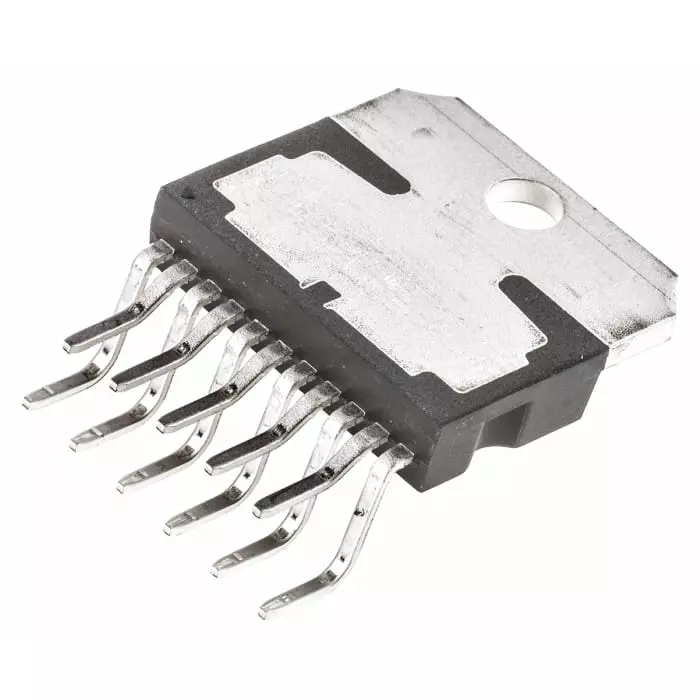

| Type of Product | Brushed Motor Controller |
| Model No | L6203 |
| Dimension | 20.2 X 5 x 17.75 mm |
| Length | 20.2 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Brushed Motor Controller |
Model No |
L6203 |
Dimension |
20.2 X 5 x 17.75 mm |
Length |
20.2 mm |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Package Type |
MULTIWATT V |
Pin Count |
11 |
Mounting Type |
Through Hole |
Maximum Operating Supply Voltage |
48 V |
Maximum Operating Temperature |
+150 °C |
Minimum Operating Supply Voltage |
12 V |
Minimum Operating Temperature |
-40 °C |
Width |
5 mm |
Height |
17.75 mm |
Motor Type |
Brushed DC |
Output Configuration |
Full Bridge |
Maximum Collector Emitter Voltage |
48 V |
Maximum IGBT Collector Current |
4 Amp |
Typical Switching Frequency |
30 kHz |
