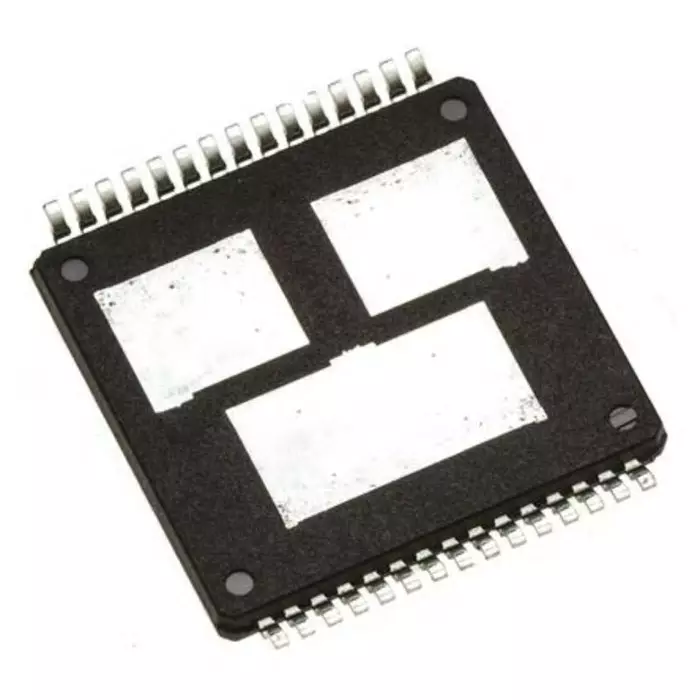

| Type of Product | Brushed Motor Driver IC |
| Model No | VNH3SP30TR-E |
| Dimension | 17.2 x 16 x 2.25 mm |
| Length | 17.2 mm |
Type of Product |
Brushed Motor Driver IC |
Model No |
VNH3SP30TR-E |
Dimension |
17.2 x 16 x 2.25 mm |
Length |
17.2 mm |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Package Type |
MultiPowerSO |
Pin Count |
30 |
Mounting Type |
Surface Mount |
Maximum Operating Supply Voltage |
36 V |
Maximum Operating Temperature |
+150 °C |
Minimum Operating Supply Voltage |
5.5 V |
Minimum Operating Temperature |
-40 °C |
Automotive Standard |
AEC-Q100 |
Width |
16 mm |
Height |
2.25 mm |
Motor Type |
Brushed DC |
Output Configuration |
Full Bridge |
Maximum Collector Emitter Voltage |
40 V |
Maximum IGBT Collector Current |
30 Amp |
Typical Switching Frequency |
10 kHz |
