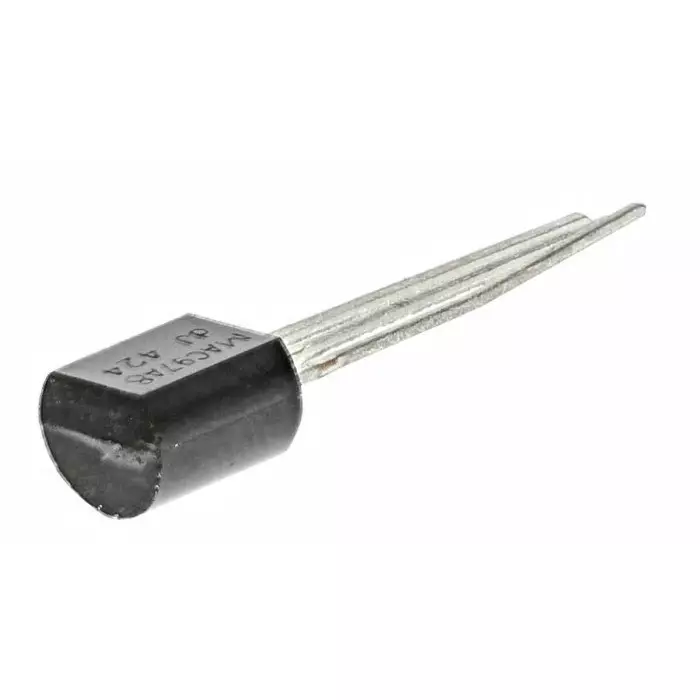

| Type of Product | TRIAC |
| Dimension | 4.2 x 4.8 x 5.2mm |
| Length | 4.2mm |
| Country of Origin | United Kingdom |
Type of Product |
TRIAC |
Dimension |
4.2 x 4.8 x 5.2mm |
Length |
4.2mm |
Country of Origin |
United Kingdom |
Name of Manufacturer/Packer/Importer |
WEEN SEMICONDUCTORS |
Package Type |
TO-92 |
Pin Count |
3 |
Mounting Type |
Through Hole |
Maximum Operating Temperature |
+125 °C |
Minimum Operating Temperature |
-40 °C |
Width |
4.8mm |
Height |
5.2mm |
Manufacturer Part Number |
MAC97A8/DG,412 |
Repetitive Peak Forward Blocking Voltage |
600V |
Surge Current Rating |
8.8A |
Repetitive Peak Reverse Voltage |
600V |
Maximum Gate Trigger Current |
7mA |
Rated Average On-State Current |
0.6A |
Repetitive Peak Off-State Current |
100µA |
Peak On-State Voltage |
1.9V |
Maximum Gate Trigger Voltage |
2V |
Maximum Holding Current |
10mA |
