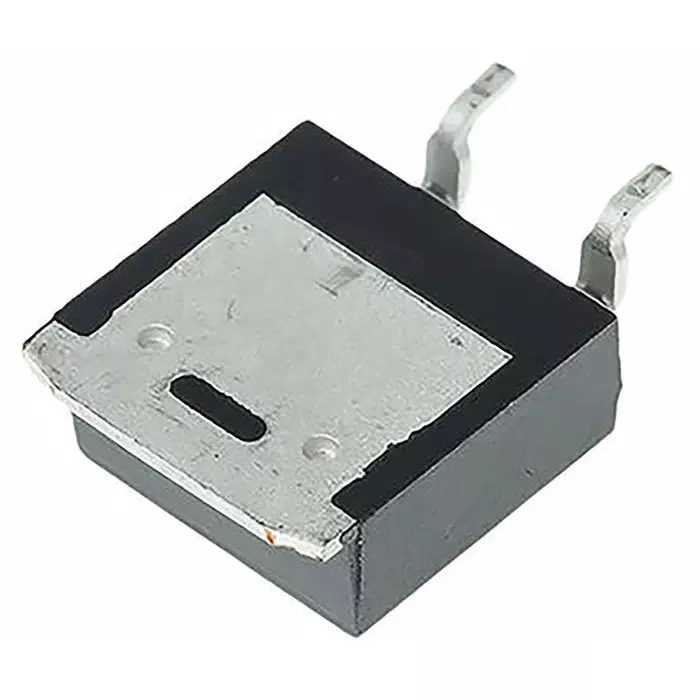

| Type of Product | TRIAC |
| Dimension | 6.73 x 6.22 x 2.38mm |
| Length | 6.73mm |
| Country of Origin | China |
Type of Product |
TRIAC |
Dimension |
6.73 x 6.22 x 2.38mm |
Length |
6.73mm |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
WEEN SEMICONDUCTORS |
Package Type |
DPAK (TO-252) |
Pin Count |
3 |
Mounting Type |
Surface Mount |
Maximum Operating Temperature |
+125 °C |
Minimum Operating Temperature |
-40 °C |
Width |
6.22mm |
Height |
2.38mm |
Manufacturer Part Number |
BT137S-600,118 |
Repetitive Peak Forward Blocking Voltage |
600V |
Surge Current Rating |
71A |
Repetitive Peak Reverse Voltage |
600V |
Maximum Gate Trigger Current |
70mA |
Rated Average On-State Current |
8A |
Repetitive Peak Off-State Current |
0.5mA |
Peak On-State Voltage |
1.65V |
Maximum Gate Trigger Voltage |
1.5V |
Maximum Holding Current |
20mA |
