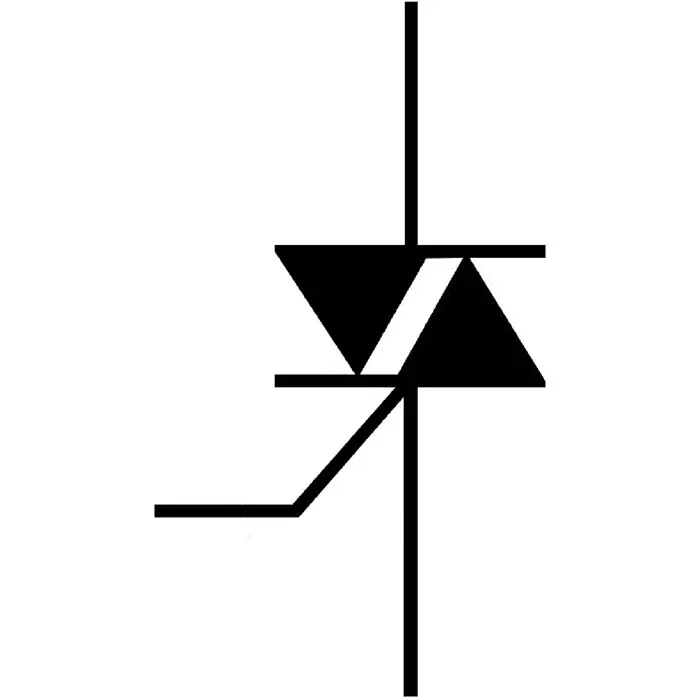

| Type of Product | TRIAC |
| Dimension | 7.8 x 2.8 x 11.1mm |
| Length | 7.8mm |
| Country of Origin | China |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
TRIAC |
Dimension |
7.8 x 2.8 x 11.1mm |
Length |
7.8mm |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
WEEN SEMICONDUCTORS |
Package Type |
SOT-82 |
Pin Count |
3 |
Mounting Type |
Through Hole |
Maximum Operating Temperature |
+125 °C |
Minimum Operating Temperature |
-40 °C |
Width |
2.8mm |
Height |
11.1mm |
Manufacturer Part Number |
BT134-600 |
Repetitive Peak Forward Blocking Voltage |
600V |
Surge Current Rating |
27A |
Repetitive Peak Reverse Voltage |
600V |
Maximum Gate Trigger Current |
70mA |
Rated Average On-State Current |
4A |
Repetitive Peak Off-State Current |
0.5mA |
Peak On-State Voltage |
1.7V |
Maximum Gate Trigger Voltage |
1.5V |
Maximum Holding Current |
15mA |
