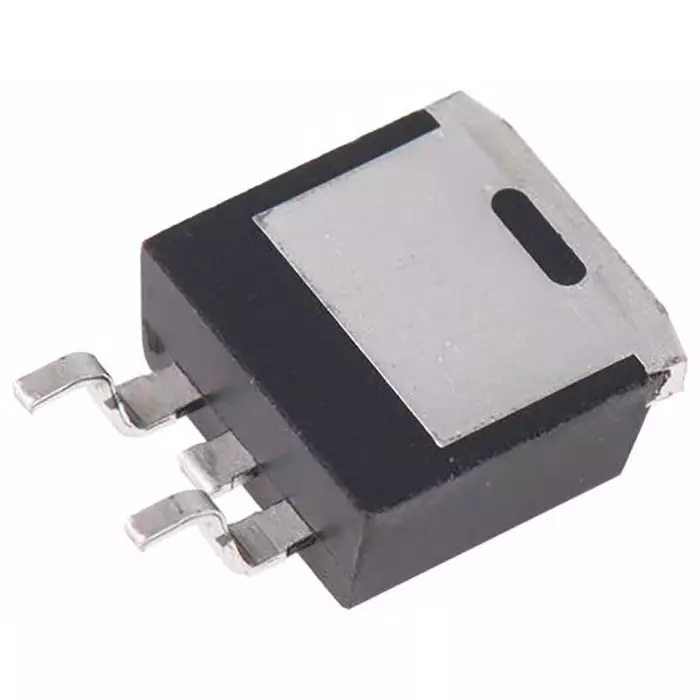

| Type of Product | TRIAC |
| Dimension | 10.3 x 9.4 x 4.5mm |
| Length | 10.3mm |
| Country of Origin | United Kingdom |
Type of Product |
TRIAC |
Dimension |
10.3 x 9.4 x 4.5mm |
Length |
10.3mm |
Country of Origin |
United Kingdom |
Name of Manufacturer/Packer/Importer |
WEEN SEMICONDUCTORS |
Package Type |
D2PAK (TO-263) |
Pin Count |
3 |
Mounting Type |
Surface Mount |
Maximum Operating Temperature |
+125 °C |
Minimum Operating Temperature |
-40 °C |
Width |
9.4mm |
Height |
4.5mm |
Manufacturer Part Number |
BT139B-600,118 |
Repetitive Peak Forward Blocking Voltage |
600V |
Surge Current Rating |
170A |
Repetitive Peak Reverse Voltage |
600V |
Maximum Gate Trigger Current |
70mA |
Rated Average On-State Current |
16A |
Repetitive Peak Off-State Current |
0.5mA |
Peak On-State Voltage |
1.6V |
Maximum Gate Trigger Voltage |
1.5V |
Maximum Holding Current |
45mA |
